Product Overview

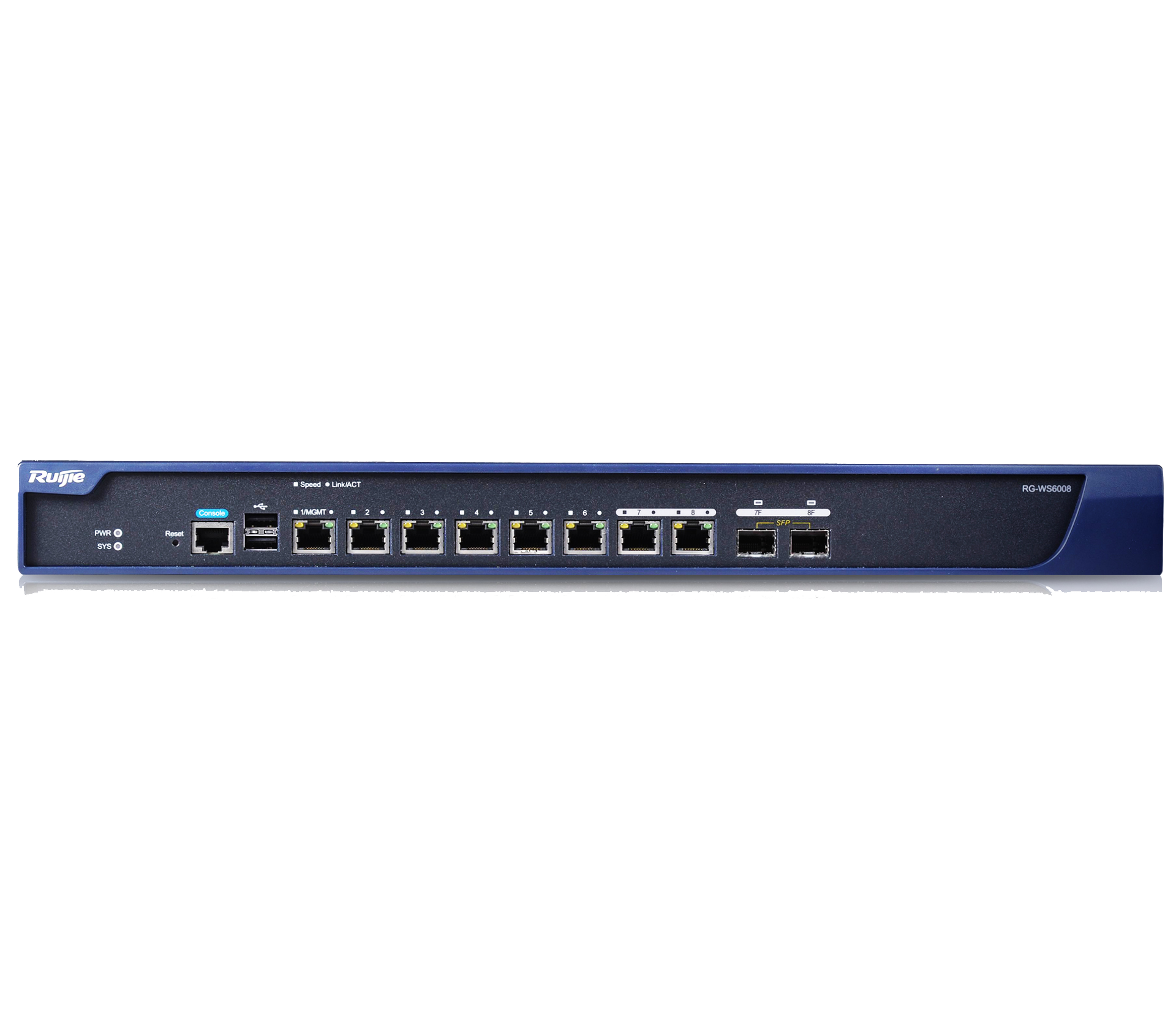

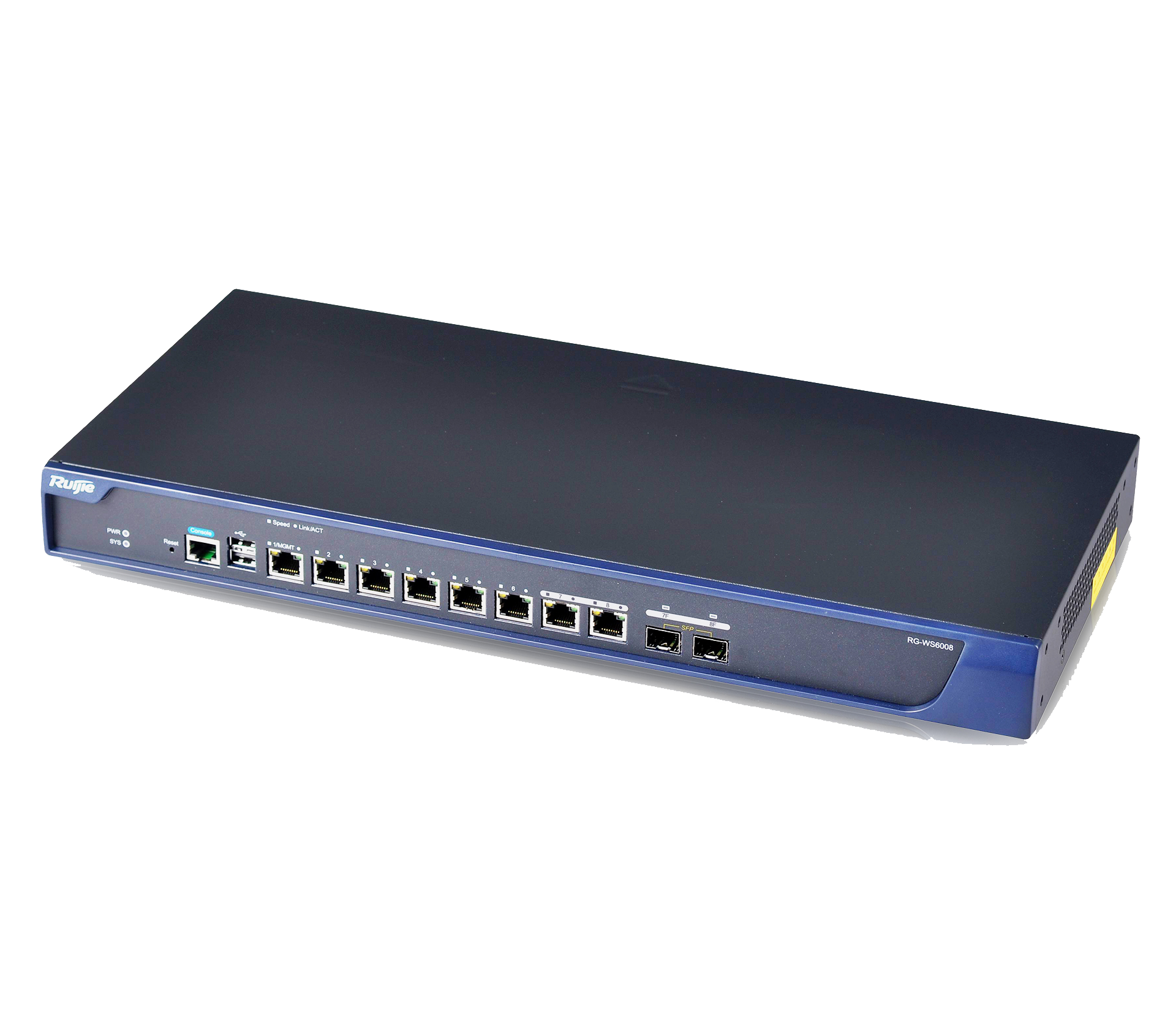

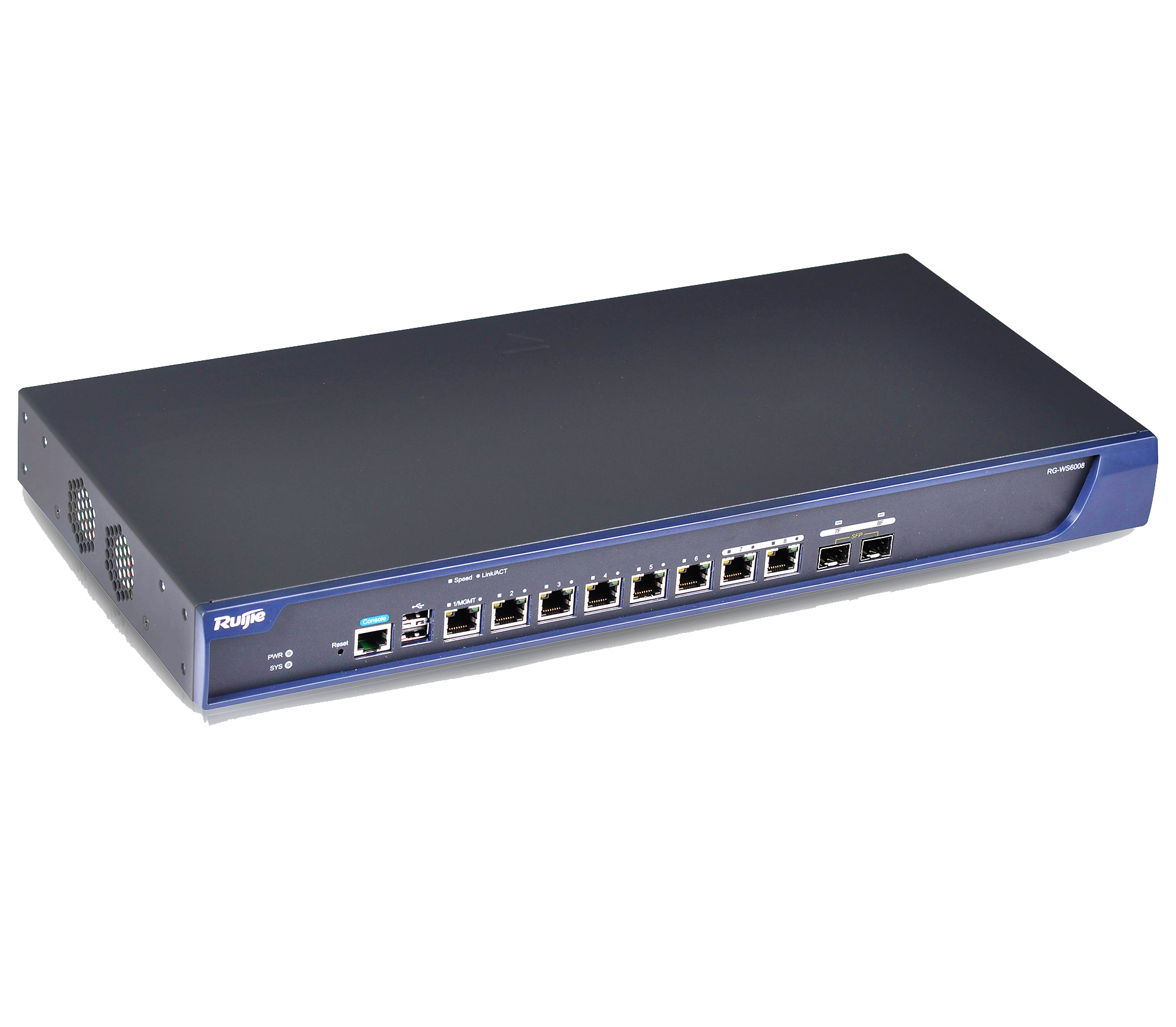

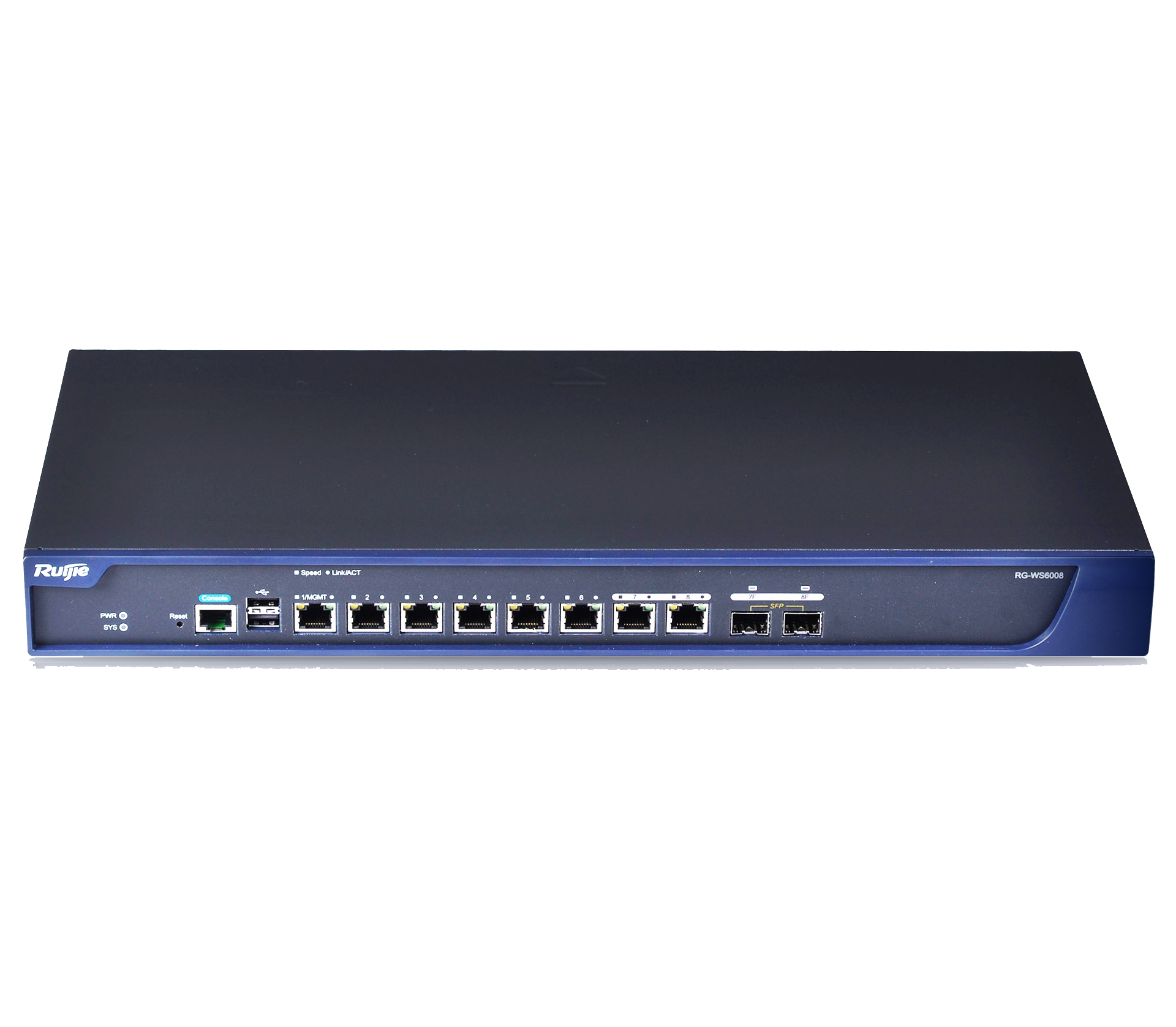

The RG-WS6008 high-performance wireless access controller (AC), developed by Ruijie Networks, is targeted for high-speed wireless networks. It can be deployed on a Layer 2 or Layer 3 network without any architecture or hardware device changes, delivering seamless and secure control over wireless networks.
The RG-WS6008 can manage up to 32 wireless access points (APs) by default. With licenses for capacity expansion, it can manage a maximum of 224 generic APs or 448 wall-mounted APs.
Through powerful centralized and visualized management and control over wireless networks, the RG-WS6008 can significantly simplify construction and deployment of wireless networks.
The RG-WS6008, adopting enhanced security and clustering technologies, offers identity-based networking services. Multiple ACs in a cluster can share a user database, allowing clients to seamlessly roam in different areas of a network. The cluster design guarantees the security and session integrity during roaming and smooth interaction of data and voice over Wi-Fi applications.


Dimensions and Weight	RG-WS6008
Dimensions (W x D x H)	440 mm x 200 mm x 43.6 mm (17.4 in. x 7.9 in. x 1.8 in.)
Rack height	1 RU
Weight	2.9 kg (6.4 lbs)



Ports	RG-WS6008
Fixed service port	6 x 10/100/1000Base-T Ethernet ports with auto-negotiation.  ● Auto MDI/MDIX crossover ● Port 1 can be used as an out-of-band management port. 2 x combo ports, when the combo port is used as an electrical port, it supports ● 10/100/1000Base-T auto-negotiation ● Auto MDI/MDIX crossover
Fixed management port	1 x RJ45 console port 2 x USB ports
Status LED	1 x system status LED 1 x power status LED 10 x service port LEDs
Button	1 x Reset button ● Press the button for shorter than 3 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings. 1 x Power switch button



Power Supply and Consumption	RG-WS6008
Max. power consumption	40 W
Power module	1 x 40 W built-in power module
Input voltage	100 V AC to 240 V AC, 50 Hz to 60 Hz
Input current	1.5 A (max. RMS current)
Output voltage	12 V/3.33 A



Environment and Reliability	RG-WS6008
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft.) and 5,000 m (16,404 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Operating altitude	0 m to 3000 m (0 ft to 9843 ft.)
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing)
Fan	Fan speed adjustment Fan fault alarm
Acoustic noise	< 78 dB
Mean Time Between Failure (MTBF)	200,000 hours (22 years) at the operating temperature of 25°C (77°F)



Certifications and Regulatory Compliance	RG-WS6008
Safety regulations	GB 4943.1 CE Marked, EN/IEC 62368-1 (replacing EN/IEC 60950-1) Low Voltage Directive 2014/35/EU
EMC regulations	EN 300 386, EN301 489, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,EN 61000-4-5,  EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

*For more country-specific regulatory information and approvals, contact your local sales agency.


Performance and Capacity	RG-WS6008
WLAN
Default number of manageable APs	32 Note: The default number of APs that can be managed by the RG-WS6008 is subject to the AP model. See the Ordering Information for details.
Max. number of configurable APs	2,048
Max. number of manageable APs	448 Note: The maximum number of APs that can be managed by the RG-WS6008 is subject to the AP model. See the Ordering Information for details.
Maximum number of manageable STAs	7,168 Note: The maximum number of STAs that can be managed by the RG-WS6008 is subject to the network environment. Contact technical support team for details.
WLAN service	Max. number of WLAN IDs: 2,048 Max. number of associated STAs per WLAN: 7,168
Intra-AC roaming handoff time	< 50 ms
Max. number of virtualized ACs	4
Number of concurrent CAPWAP data channels	2,688
Routing and Switching
Number of MAC address entries	32,768
Number of VLANs	4,096
Number of ARP entries	32,768
DHCP address pools	Number of IPv4 address pools: 2,000 Number of IPv4 addresses: 24,576 Number of IPv6 address pools: 256 Number of IPv6 addresses: 2,048
Number of routing entries	IPv4 routing entries: 8,192 IPv6 routing entries: 10,000
Number of multicast entries	Static routing entries: 2,048 Multicast group routing entries: 4,096
Security and Authentication
Max. number of STAs supported by the built-in Portal server	1,500
Number of ACL entries	65,536



Applicable Software Version	RG-WS6008
Applicable software version	RGOS11.9(6)W1B1 or later



WLAN	RG-WS6008
IEEE 802.11 protocols	802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax
CAPWAP	Layer 2 and Layer 3 topology between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT
Roaming	Intra-AC Layer 2 or Layer 3 roaming Inter-AC Layer 2 or Layer 3 roaming
Forwarding mode	Centralized forwarding Local forwarding Service-based flexible forwarding
Wireless QoS	AP/WLAN/STA-based rate limiting (WLAN/STA-based rate limit range: 8-261,120 in the unit of 8 Kbps. For example, if you set the value to 8, the rate limit is 8 x 8 Kbps = 64 Kbps.) Static and intelligent rate limiting based on STA quantity Fair scheduling
User isolation	AC-based user isolation AP-based user isolation WLAN-based user isolation
Reliability	AC virtualization AC failover Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby) Multi-AC cluster (N-to-N) Remote intelligent perception technology (RIPT) Non-stop service during upgrade
STA management	Access control based on the number of STAs associated with the AP Access control based on the number of STAs associated with the SSID Balanced access control based on the number of STAs associated with the AP Balanced access control based on the AP traffic Band steering Configuration of the RSSI threshold in dB (Range: 0-100) Configuration of the STA idle timeout period in seconds (range: 60-86,400)
WLAN optimization	Adjustment of the transmit power for beacon packets or probe responses
RF management	Country or region code setting Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel Automatic adjustment of the data rate Coverage hole compensation AP load balancing based on traffic and STA quantity Band selection Radio Frequency Interference (RFI) detection and mitigation



Security	RG-WS6008
IPv4 security authentication	Web authentication 802.1X authentication MAB authentication SMS authentication QR code-based authentication
IPv6 security authentication	Web authentication
IEEE 802.11 security and encryption	Multi-SSID mode SSID hiding IEEE 802.11i-compliant PSK authentication WPA and WPA2 WPA3: WPA3-Personal (SAE), WPA3-Enterprise (CCMP, 128-bit), and WPA3-Enterprise (GCMP, 192-bit) WEP (WEP/WEP128) TKIP CCMP Anti-ARP spoofing
CPP	Supported
NFPP	Supported
WIDS	Supported
AP virtualization	Supported



Protocols	RG-WS6008
IPv4 protocols	Ping and traceroute DHCP server, DHCP client, DHCP relay, and DHCP snooping DNS client NTP Telnet TFTP server and TFTP client FTP server and FTP client
IPv6 protocols	DNSv6 client DHCPv6 relay and DHCPv6 server TFTPv6 client FTPv6 server and FTPv6 client IPv6 CAPWAP ICMPv6 IPv6 ping Manual tunnels and automatic tunnels Manually configured IP addresses and automatically created local addresses IPv6 traceroute
IPv4 routing	Static routing, RIP, and OSPF
IPv6 routing	Static routing



Management	RG-WS6008
Network management	SNMP v1/v2c/v3 RMON Syslog
Network management platform	Eweb Ruijie Cloud RIIL Wi-Fi heat map
User access management	Console port login, Telnet login, SSH login, and FTP upload
