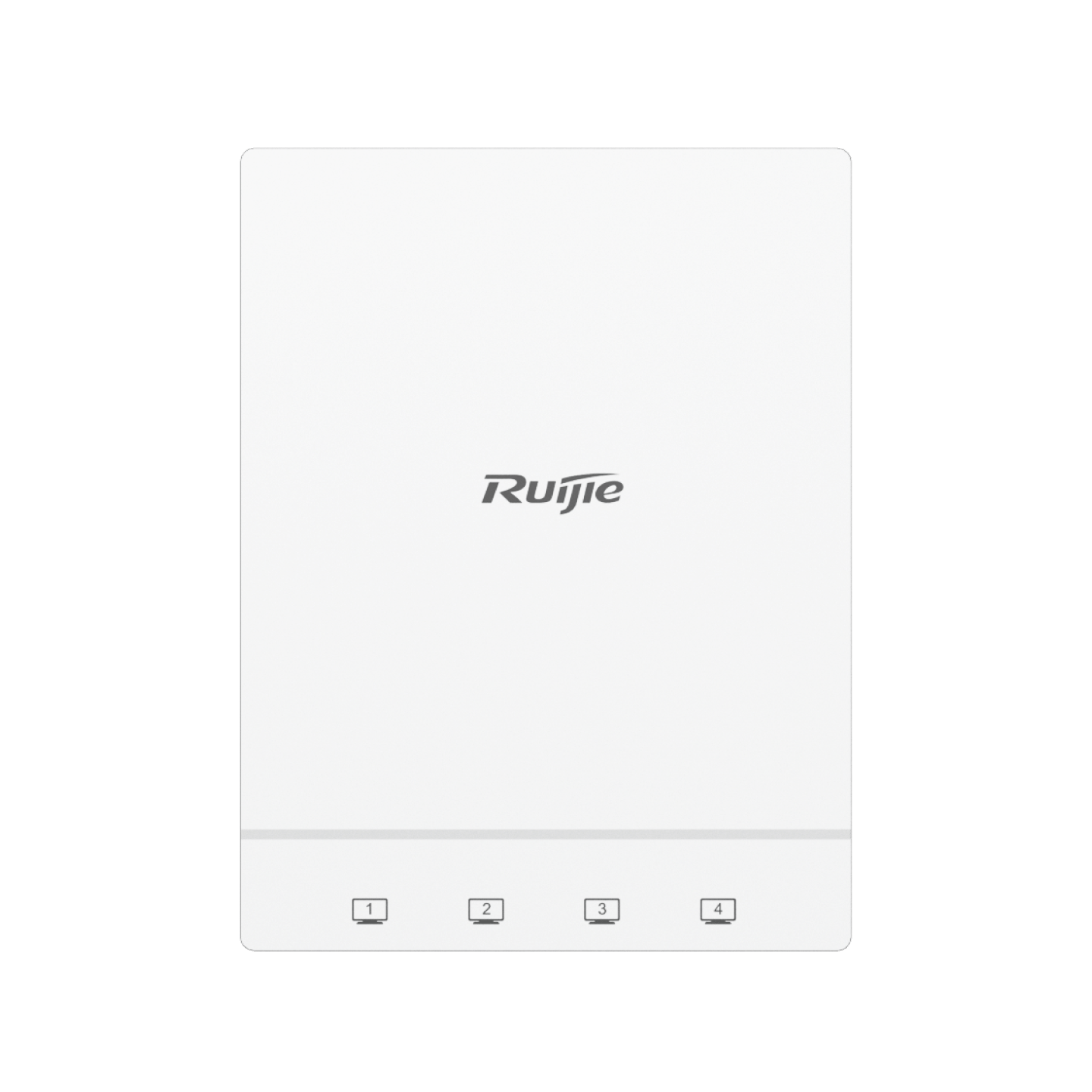

RG-AP180

Multi-service Linkage, All-in-One for Office Scenarios
1.775 Gbps Ultra-Fast Speed with Wi-Fi 6
Full-Scenario Enterprise-class Authentication for Enhanced Security
Ruijie Cloud Management, Intelligent Optimization, and Easy O&M

Wireless Protocols
802.11a/b/g/n/ac/ax
Radio Design
Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2)
up to 4 spatial streams
Data Rate
Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps
Antenna Type
Built-in intelligent antennas
Fixed Service Port
Uplink: 1 x 10/100/1000BASE-T port，

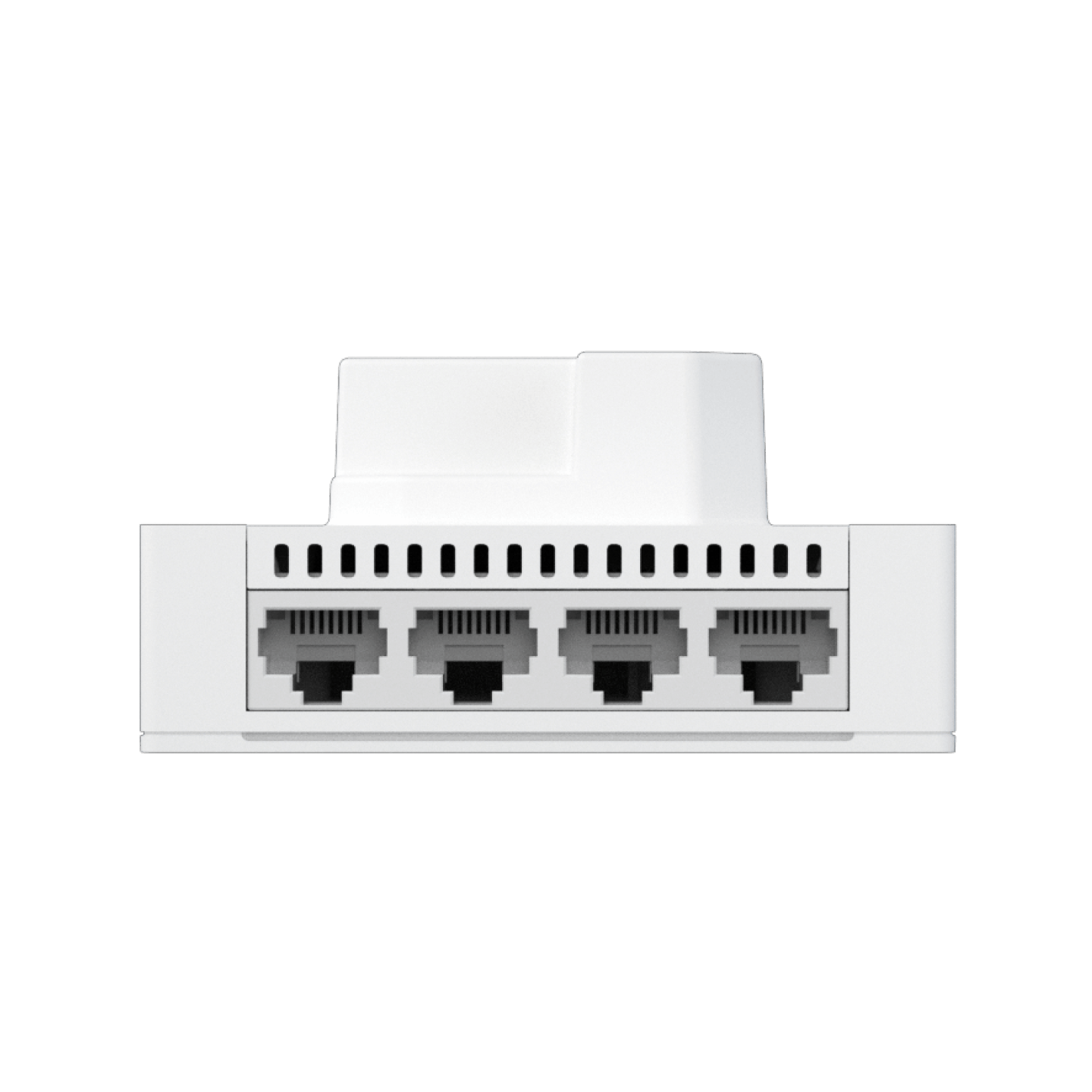

Downlink: 4 x 10/100/1000BASE-T ports
Bluetooth
Bluetooth 5.0
Input Power Supply
12 V DC/1 A power supply
PoE/PoE+ (802.3af/at)
Max. Power Consumption
10 W
External Power Supply
No
Operating Temperature
–10°C to +50°C (14°F to +122°F)
IP Rating
N/A
Dimensions (W x D x H)
In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.)
Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
Mounting
Wall mount/ 86-mm and EU standard junction boxes

Dimensions and Weight	RG-AP180
Unit dimensions (W x H x D)	In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.) Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
Shipping dimensions (W x D x H)	508 mm x 390 mm x 152 mm (20.00 in. x 15.35 in. x 5.98 in.)
Unit weight	0.22 kg (0.49 lbs)
Shipping weight	0.31 kg (0.68 lbs)
Mounting	Wall-mount Junction box-mount (86 mm/European-standard junction box) Note: If you want to use an American-standard junction box, purchase an RG-AP180-MNT mounting bracket separately.
Color	Elegant white

Wi-Fi Radio	RG-AP180
Radio design	Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO
Operating frequencies	Radio 1: 802.11b/g/n/ax ● 2.400 GHz to 2.4835 GHz, ISM, channels 1 to 13 Radio 2: 802.11a/n/ac/ax ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
Data rates	Combined peak data rate: 1.775 Gbps Radio 1: 2.4 GHz, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 1.201 Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Data rate set	The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Antenna type	Built-in intelligent antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Antenna gain	2.4 GHz: 2.5 dBi 5 GHz: 5.5 dBi
Maximum transmit power	2.4 GHz radio: 20 dBm (17 dBm per chain) 5 GHz radio: 20 dBm (17 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm
Power increment	Configurable in increments of 1 dBm
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency Performance	RG-AP180
Frequency Band and Protocol	Data Rate	Maximum Transmit Power per Transmit Chain	Maximum Receive Sensitivity per Receive Chain
2.4 GHz, 802.11b	1 Mbps	18 dBm	–91 dBm
	2 Mbps	17 dBm	–91 dBm
	5.5 Mbps	16 dBm	–90 dBm
	11 Mbps	15 dBm	–87 dBm
2.4 GHz, 802.11g	6 Mbps	18 dBm	–89 dBm
	24 Mbps	16 dBm	–82 dBm
	36 Mbps	16 dBm	–78 dBm
	54 Mbps	15 dBm	–72 dBm
2.4 GHz, 802.11n (HT20)	MCS0	18 dBm	–85 dBm
2.4 GHz, 802.11n (HT20)	MCS7	15 dBm	–77 dBm
2.4 GHz, 802.11n (HT40)	MCS0	18 dBm	–82 dBm
2.4 GHz, 802.11n (HT40)	MCS7	15 dBm	–64 dBm
2.4 GHz, 802.11ax (HE20)	MCS0	18 dBm	–85 dBm
2.4 GHz, 802.11ax (HE20)	MCS11	12 dBm	–58 dBm
2.4 GHz, 802.11ax (HE40)	MCS0	18 dBm	–82 dBm
2.4 GHz, 802.11ax (HE40)	MCS11	12 dBm	–54 dBm
5 GHz, 802.11a	6 Mbps	18 dBm	–89 dBm
	24 Mbps	16 dBm	–82 dBm
	36 Mbps	16 dBm	–78 dBm
	54 Mbps	15 dBm	–72 dBm
5 GHz, 802.11n (HT20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11n (HT20)	MCS7	15 dBm	–67 dBm
5 GHz, 802.11n (HT40)	MCS0	18 dBm	–82 dBm
5 GHz, 802.11n (HT40)	MCS7	15 dBm	–64 dBm
5 GHz, 802.11ac (VHT20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11ac (VHT20)	MCS9	13 dBm	–60 dBm
5 GHz, 802.11ac (VHT40)	MCS0	18 dBm	–82 dBm
5 GHz, 802.11ac (VHT40)	MCS9	13 dBm	–57 dBm
5 GHz, 802.11ac (VHT80)	MCS0	18 dBm	–79 dBm
5 GHz, 802.11ac (VHT80)	MCS9	13 dBm	–53 dBm
5 GHz, 802.11ax (HE20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11ax (HE20)	MCS11	12 dBm	–58 dBm
5 GHz, 802.11ax (HE40)	MCS0	18 dBm	–82 dBm
5 GHz, 802.11ax (HE40)	MCS11	12 dBm	–54 dBm
5 GHz, 802.11ax (HE80)	MCS0	18 dBm	–79 dBm
5 GHz, 802.11ax (HE80)	MCS11	12 dBm	–52 dBm

Bluetooth Radio	RG-AP180
Bluetooth	Bluetooth 5.0
Antenna type	Onboard omnidirectional antenna
Maximum antenna gain	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maximum transmit power	10 dBm
Receive sensitivity	–88 dBm (@BLE)

Ports Specifications	RG-AP180

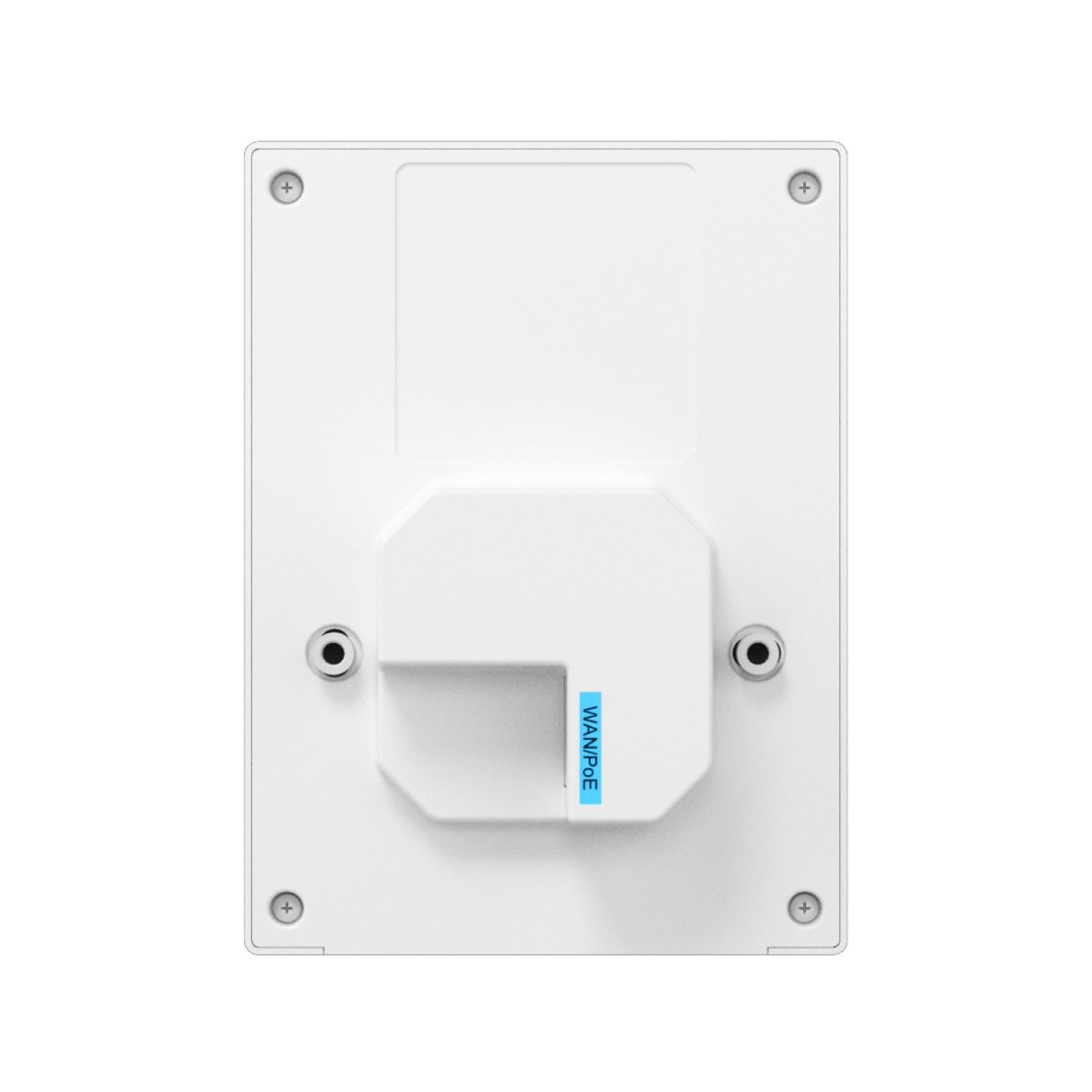

Fixed service port	Uplink: 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+). Downlink: 4 x 10/100/1000BASE-T ports
Fixed management port	1 x Micro USB console port (under the decorative cover)
Status LED	1 x multi-color system status LED

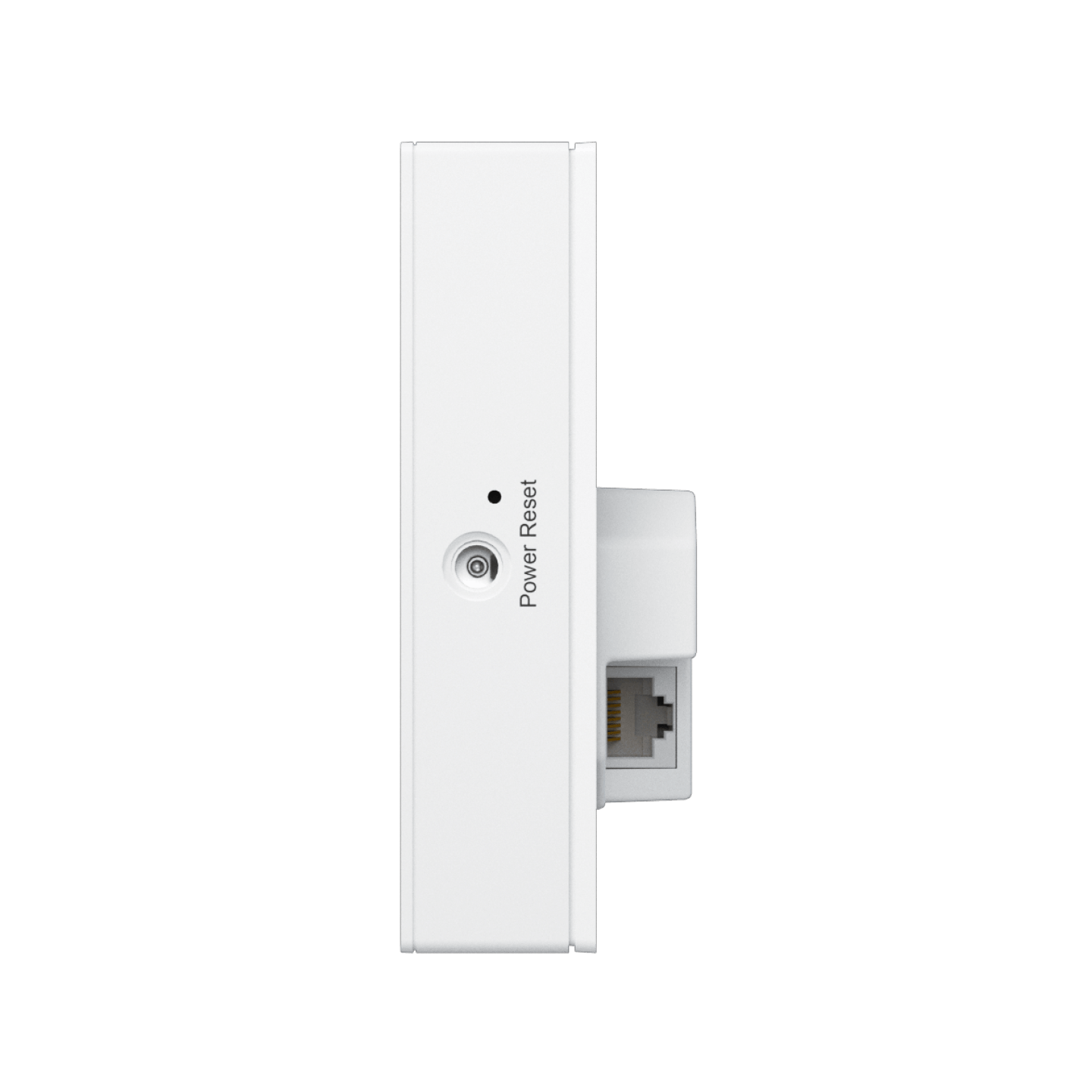

Button	1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings.

Power Supply and Consumption	RG-AP180
Input power supply	The AP supports the following two power supply modes: ● 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard. Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance. ● If both DC power and PoE are available, DC power is preferred.
Overall power consumption	Maximum power consumption: 10 W ● DC powered: 10 W ● PoE powered (802.3af): 10 W ● Idle mode: 3.3 W

Environment and Reliability	RG-AP180
Temperature	Operating temperature: –10°C to +50°C (14°F to 122°F) Storage temperature: –40°C to+ 70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Humidity	Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)
Environment standard	Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995
Mean Time Between Failure (MTBF)	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Regulatory Compliance	RG-AP180
Regulatory compliance	EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 300 328 EN 301 893 EN 300 440 FCC Part 15 EN IEC 62311 IEC 62368-1 EN 62368-1

*For more country-specific regulatory information and approvals, contact your local sales agency.

Software Specifications

Applicable software version	RG-AP180
Applicable software version	RGOS11.9(6)W1B9 or later

WLAN	RG-AP180
Recommended maximum number of active devices per AP	120
Maximum number of associated clients	256 Note The number of associated clients varies according to the environment.
Maximum number of BSSIDs	16 (up to 8 BSSIDs per radio)
STA management	SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent client identification technology Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming

Security and Authentication	RG-AP180
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS) PSK, web, and 802.1X authentication QR code-based guest authentication, SMS authentication, MAB authentication (used with the RG-WS series wireless access controller) Data encryption: WEP (64/128-bit), WPA-TKIP, WPA-PSK, WPA2-AES, WPA3
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment ● ACL assignment based on time spans ● ACL assignment (complete entry) based on MAC addresses ● Execution of pre-configured ACLs (entry index) based on MAC addresses
CPP	Supported
NFPP	Supported

Routing and Switching	RG-AP180
IP service	Static IPv4 address and DHCP-assigned IPv4 address NAT ALG FTP and NAT ALG DNS
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping IPv6 DHCP client
IP routing	IPv4/IPv6 static routing
VPN	PPPoE client IPsec VPN, up to four IPsec tunnels

Management	RG-AP180
Network management	NTP server and NTP client SNTP client SNMP v1/v2c/v3 Fault inspection and alarm Information statistics and logging
Network management platform	Web-based management (Eweb)
User access management	Console ,Telnet-based management, and TFTP client
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
