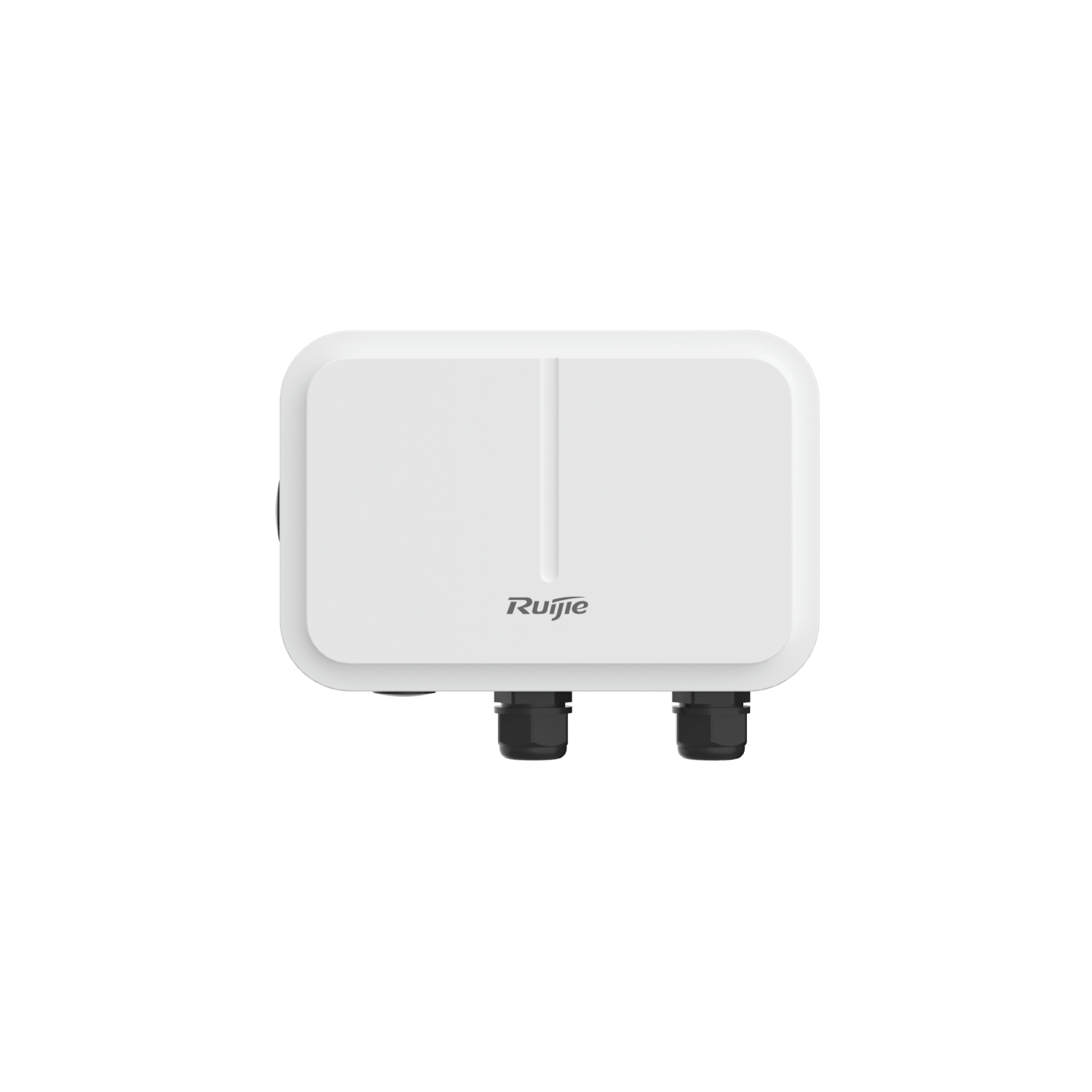

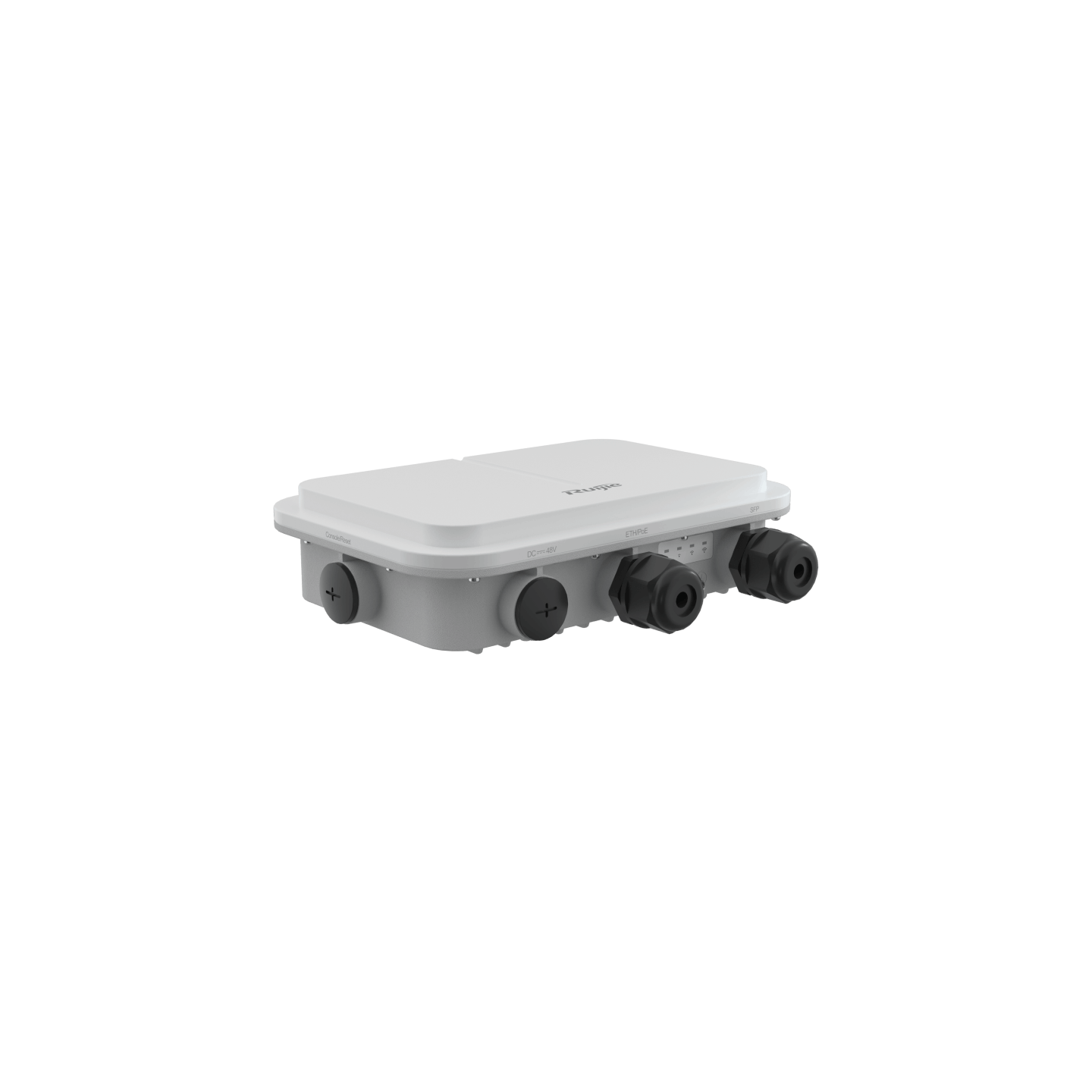

RG-AP680-L (WiFi Outdoor)

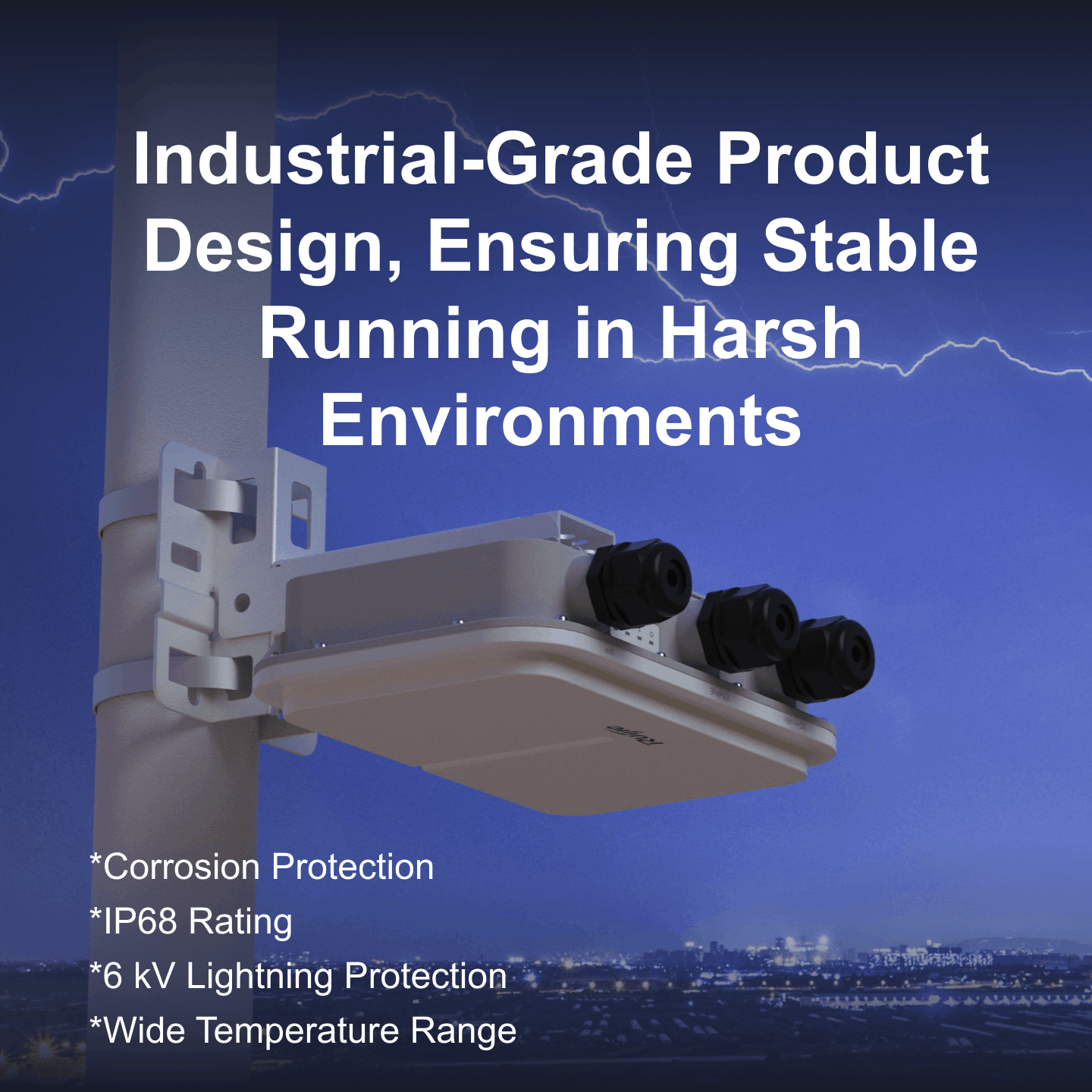

- Industrial-grade product design, IP68 rating, Operating temperature: –40°C to +65°C
- High-power omnidirectional antennas with 360° coverage to every corner
- Upgraded to Wi-Fi 6, a combined data rate of up to 2.976 Gbps

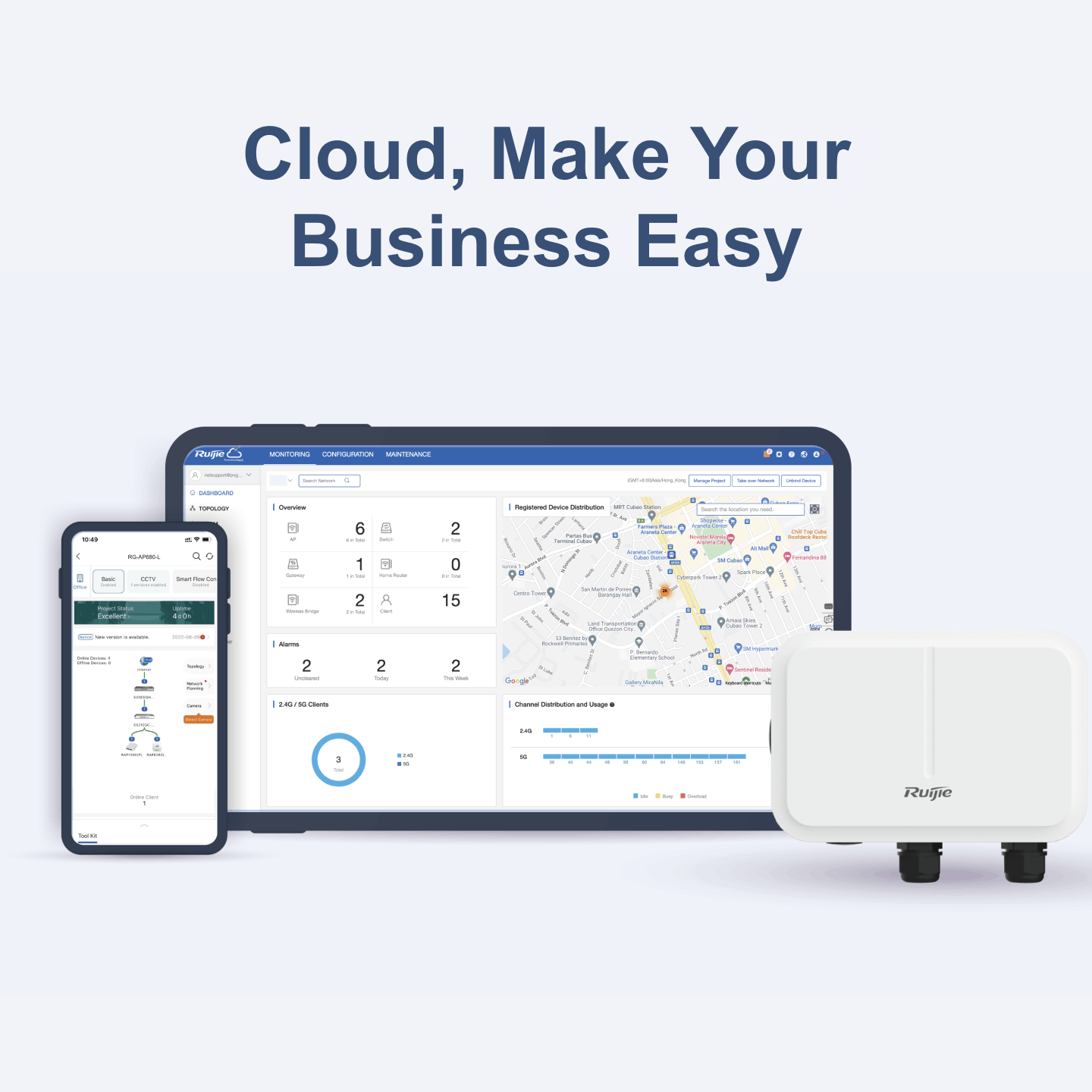

- Ruijie cloud management, intelligent optimization
Product Overview
The RG-WS6512, a high-performance wireless controller developed by Ruijie Networks, is a future-proof wireless network device that is suitable for higher education, general education, government, and financial scenarios. It can be seamlessly integrated into any Layer 2 or Layer 3 network without changing the existing network architecture or hardware devices, enabling secure wireless network control. The RG-WS6512 can manage 128 wireless access points (APs) by default. With license upgrade, it can manage up to 1,152 generic APs or 2,304 wall-mounted APs.
The RG-WS6512 can enable powerful centralized and visualized management and control, greatly simplifying implementation and deployment of wireless networks. With enhanced security and clustering technologies, the RG-WS6512 provides network services through identity-based networking, allows multiple wireless controllers to share user databases, and enables STAs to seamlessly roam across different areas of a network. This design ensures security and session integrity during mobile roaming, making it fit for data interaction and smooth voice services over Wi-Fi communication.
up to 4 spatial streams
1 x 1GE SFP port
PoE/PoE+ (802.3af/at)
|
Dimensions and Weight |
RG-AP680-L |
|
Unit dimensions(W x D x H) |
251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
|
Shipping dimensions(W x D x H) |
405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.79 in.) |
|
Unit weight |
Main unit: 1.0 kg (2.20 lbs) Mounting bracket: 0.9 kg (1.98 lbs) |
|
Shipping weight |
3.15 kg (6.94 lbs) |
|
Mounting |
Ceiling/Pole-mount (a mounting bracket is delivered with the main unit) |
|
Wi-Fi Radio |
RG-AP680-L |
|
Radio design |
Dual-radio and four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
|
Operating frequencies |
Radio 1: 802.11b/g/n/ax ● 2.400 GHz to 2.4835 GHz, channels 1 to 13 Radio 2: 802.11a/n/ac/ax ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
|
Data rates |
Combined peak data rate: 2.976 Gbps Radio 1: 2.4 GHz, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 2.402 Gbps ● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical) ● Two spatial stream Multi-User (MU) MIMO for up to 2.402 Gbps wireless data rate to up to two 1SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum) ● Two spatial stream Multi-User (MU) MIMO for up to 1.201 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical) |
|
Data rate set |
The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 2,VHT20 to VHT160) ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160) |
|
Packet aggregation |
802.11n/ac/ax : A-MPDU and A-MSDU |
|
Antenna type |
Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
|
Antenna gain |
2.4 GHz radio: 3.5 dBi 5 GHz radio: 5.5 dBi |
|
Maximum transmit power |
2.4 GHz radio: 28 dBm (25 dBm per chain) 5 GHz radio: 28 dBm (25 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand 2.400 GHz to 2.4835 GHz: 20 dBm 5.470 GHz to 5.725 GHz: 30 dBm 5.725 GHz to 5.825 GHz: 30 dBm
Peru 2.400 GHz to 2.4835 GHz: EIRP ≤ 36dBm 5.150 GHz to 5.250 GHz: EIRP ≤ 23dBm 5.250 GHz to 5.350 GHz: EIRP ≤ 30dBm 5.470 GHz to 5.725 GHz: EIRP ≤ 30dBm |
|
Power increment |
Configurable in increments of 1 dBm |
|
Radio technologies |
802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
|
Modulation types |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.
|
Wi-Fi Radio Frequency Performance |
RG-AP680-L |
||
|
Frequency Band and Protocol |
Data Rate |
Maximum Transmit Power per Transmit Chain |
Maximum Receive Sensitivity per Receive Chain |
|
2.4 GHz 802.11b |
1 Mbps |
25 dBm |
-92 dBm |
|
2 Mbps |
25 dBm |
-82 dBm |
|
|
5.5 Mbps |
25 dBm |
-84 dBm |
|
|
11 Mbps |
25 dBm |
-78 dBm |
|
|
2.4 GHz 802.11g |
6 Mbps |
25 dBm |
-84 dBm |
|
24 Mbps |
23 dBm |
-74 dBm |
|
|
36 Mbps |
23 dBm |
-72 dBm |
|
|
54 Mbps |
20 dBm |
-67 dBm |
|
|
2.4 GHz 802.11n (HT20) |
MCS0 |
25 dBm |
-84 dBm |
|
MCS7 |
20 dBm |
-66 dBm |
|
|
2.4 GHz 802.11n (HT40) |
MCS0 |
25 dBm |
-79 dBm |
|
MCS7 |
20 dBm |
-
| |
-1.png)
