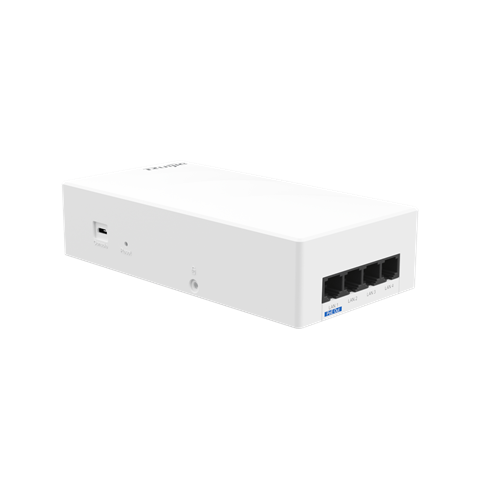

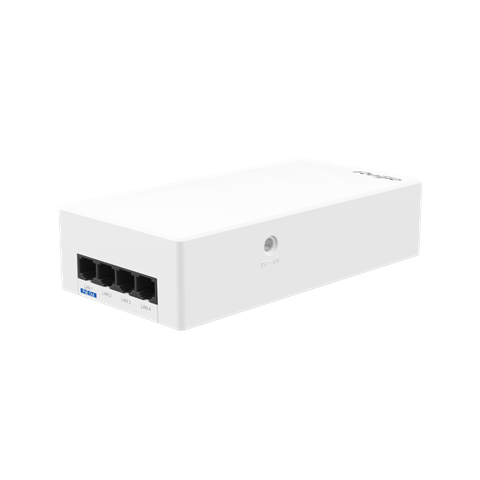

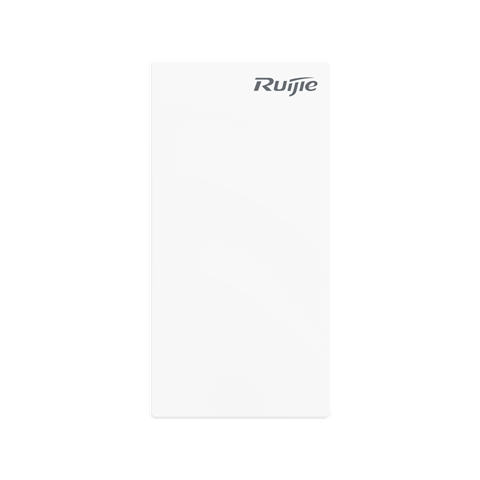

RG-AP180P-L

GIÁ BÁN: Liên hệ

Flat Rear Panel, Easy Installation on Any Wall in All Countries
2.5 Gbps Uplink Port, Achieving Ultra-High Speed Access in Rooms
PoE Out for IP Phones and Other IoT Devices
2.976 Gbps High Speed with 160 MHz Band
Ruijie cloud management, intelligent optimization

Wireless Protocols

802.11a/b/g/n/ac/ax

Radio Design

Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2)
up to 4 spatial streams

Data Rate

Combined peak data rate:2.4 GHz + 5 GHz, 2.976 Gbps

Antenna Type

Built-in omnidirectional antennas

Fixed Service Port

Uplink: 1 x 100/1000/2.5GBASE-T port
Downlink: 4 x 10/100/1000Base-T ports

Bluetooth

Bluetooth 5.1

Input Power Supply

48 V DC/0.6 A power supply
PoE/PoE+ (802.3af/at)

Max. Power Consumption

25 W

External Power Supply

Yes

Operating Temperature

0°C to +40°C (–32°F to +104°F)

IP Rating

N/A

Dimensions (W x D x H)

86 mm x 170 mm x 43 mm ( 3.39 in × 6.69 in × 1.69 in)

Mounting

Wall-mount/86-mm, EU, and US standard junction boxes

Dimensions and Weight	RG-AP180P-L
Unit dimensions(W x H x D)	86 mm x 170 mm x 43 mm ( 3.39 in × 6.69 in × 1.69 in)
Shipping dimensions(W x D x H)	399 mm x 367 mm x 245 mm ( 15.71 in × 14.45 in × 9.65 in)
Unit weight	Main unit: 0.3 kg (0.66 lbs) Mounting bracket: 0.1 kg (0.22 lbs)
Shipping weight	0.54 kg (1.19 lbs)
Mounting	Wall-mount (a mounting bracket is delivered with the main unit) Junction box-mount (86 mm/European-standard/American-standard junction box)
Color	Elegant white
Lock option	Kensington lock

Wi-Fi Radio	RG-AP180P-L
Radio design	Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO
Operating frequencies	Radio 1, 802.11b/g/n/ax: ● 2.400 GHz to 2.4835 GHz (HE20/HE40), ISM, channels 1 to 13 Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48 ● 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64 ● 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140 ● 5.725 GHz to 5.850 GHz (HE80), U-NII-3/ISM, channels 149, 153, 157, 161, and 165 Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
Data rates	Combined peak data rate: 2.976 Gbps Radio 1: 2.4 GHz, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) Radio 2: 5 GHz, 2.402 Gbps ● Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
Data rate set	The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 1,732 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT160) ● 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Antenna type	Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Antenna gain	2.4 GHz: 5 dBi 5 GHz: 5 dBi
Maximum transmit power	2.4 GHz radio: 20 dBm (17 dBm per chain) 5 GHz radio: 20 dBm (17 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm
Power increment	Configurable in increments of 1 dBm
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio Frequency Performance	RG-AP180P-L
Frequency Band and Protocol	Data Rate	Maximum Transmit Power per Transmit Chain	Maximum Receive Sensitivity per Receive Chain
2.4 GHz, 802.11b	1 Mbps	20 dBm	–96 dBm
	2 Mbps	-10 dBm	–94 dBm
	5.5 Mbps	-10 dBm	–93 dBm
	11 Mbps	-10 dBm	–89 dBm
2.4 GHz, 802.11g	6 Mbps	19 dBm	–91 dBm
	24 Mbps	17 dBm	–85 dBm
	36 Mbps	17 dBm	–80 dBm
	54 Mbps	16 dBm	–74 dBm
2.4 GHz, 802.11n (HT20)	MCS0	19 dBm	–85 dBm
2.4 GHz, 802.11n (HT20)	MCS7	16 dBm	–67 dBm
2.4 GHz, 802.11n (HT40)	MCS0	19 dBm	–82 dBm
2.4 GHz, 802.11n (HT40)	MCS7	16 dBm	–64 dBm
2.4 GHz, 802.11ax (HE20)	MCS0	18 dBm	–85 dBm
2.4 GHz, 802.11ax (HE20)	MCS11	12 dBm	–58 dBm
2.4 GHz, 802.11ax (HE40)	MCS0	17 dBm	–82 dBm
2.4 GHz, 802.11ax (HE40)	MCS11	12 dBm	–54 dBm
5 GHz, 802.11a	6 Mbps	18 dBm	–89 dBm
	24 Mbps	17 dBm	–82 dBm
	36 Mbps	17 dBm	–78 dBm
	54 Mbps	15 dBm	–72 dBm
5 GHz, 802.11n (HT20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11n (HT20)	MCS7	14 dBm	–67 dBm
5 GHz, 802.11n (HT40)	MCS0	17 dBm	–82 dBm
5 GHz, 802.11n (HT40)	MCS7	14 dBm	–64 dBm
5 GHz, 802.11ac (VHT20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11ac (VHT20)	MCS9	13 dBm	–60 dBm
5 GHz, 802.11ac (VHT40)	MCS0	17 dBm	–82 dBm
5 GHz, 802.11ac (VHT40)	MCS9	13 dBm	–57 dBm
5 GHz, 802.11ac (VHT80)	MCS0	16 dBm	–82 dBm
5 GHz, 802.11ac (VHT80)	MCS9	13 dBm	–56 dBm
5 GHz, 802.11ax (HE20)	MCS0	18 dBm	–85 dBm
5 GHz, 802.11ax (HE20)	MCS11	12 dBm	–58 dBm
5 GHz, 802.11ax (HE40)	MCS0	17 dBm	–82 dBm
5 GHz, 802.11ax (HE40)	MCS11	12 dBm	–54 dBm
5 GHz, 802.11ax (HE80)	MCS0	16 dBm	–82 dBm
5 GHz, 802.11ax (HE80)	MCS11	12 dBm	–52 dBm
5 GHz, 802.11ax (HE160)	MCS0	15 dBm	–79 dBm
5 GHz, 802.11ax (HE160)	MCS11	12 dBm	–50 dBm

Bluetooth Radio	RG-AP180P-L
Bluetooth	Bluetooth 5.1
Antenna type	Onboard omnidirectional antenna
Maximum antenna gain	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maximum transmit power	10 dBm
Receive sensitivity	–88 dBm (@BLE)

Ports Specifications	RG-AP180P-L

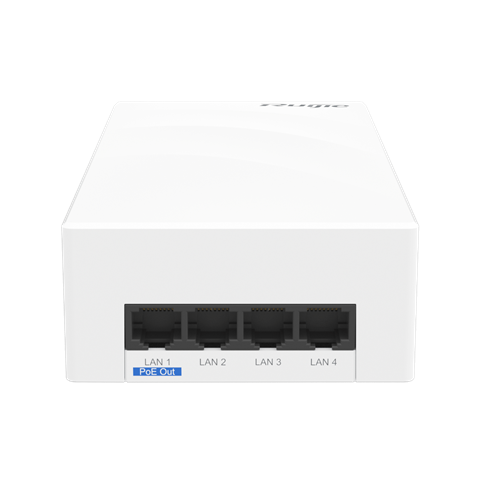

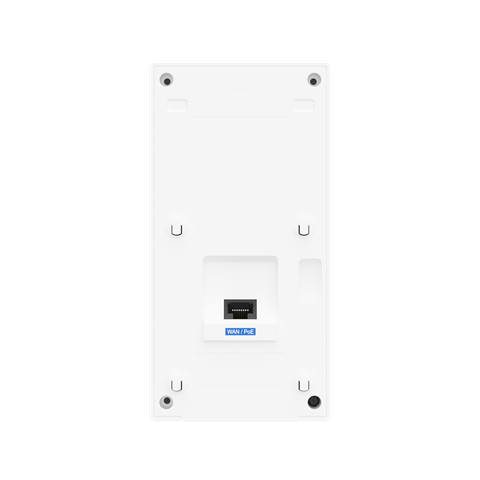

Fixed service port	Uplink: 1 x 100/1000/2.5GBASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+) When powered by 802.3af PoE, LAN 1 cannot supply power to an attached device. Downlink: 4 x 10/100/1000BASE-T ports LAN 1 supports 48 V/10 W power supply to an attached device.
Fixed management port	1 x Micro USB console port
Status LED	1 x multi-color system status LED
Button	1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings.

Power Supply and Consumption	RG-AP180P-L
Input power supply	The AP supports the following two power supply modes: ● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+). Note: ● When powered by 802.3at (PoE+), the AP operates with the optimal performance. ● If both DC power and PoE are available, DC power is preferred.
External power supply	LAN 1 supports 48 V/10 W PoE output to an attached device.
Overall power consumption	Maximum power consumption: 25 W ● DC powered: 25 W ● PoE powered (802.3af): 15 W ● PoE+ powered (802.3at): 25 W ● Idle mode: 8 W

Environment and Reliability	RG-AP180P-L
Temperature	Operating temperature: 0°C to 40°C (–32°F to +104°F) Storage temperature: –40°C to 70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).
Humidity	Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)
Environment standard	Storage and operating environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995
Mean Time Between Failure (MTBF)	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Regulatory Compliance	RG-AP180P-L
Regulatory compliance	EN 55032 EN 55035 EN 61000-3-3 EN IEC 61000-3-2 EN 301 489-1 EN 301 489-3 EN 301 489-17 EN 300 328 EN 301 893 EN 300 440 FCC Part 15 EN IEC 62311 IEC 62368-1 EN 62368-1

* For more country-specific regulatory information and approvals, contact your local sales agency.

Software Specifications

Applicable software version	RG-AP180P-L
Applicable software version	RGOS11.9(6)W3B3 or higher

WLAN	RG-AP180P-L
Recommended maximum number of active devices per AP	120
Maximum number of associated clients	256 Note The number of associated clients varies according to the environment.
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
STA management	SSID hiding Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently. Remote intelligent perception technology (RIPT) Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming

Security and Authentication	RG-AP180P-L
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS) PSK, web, 802.1x, WPA, WPA2, and WPA3 authentication WPA3-Personal (SAE) and WPA3-Personal hybrid QR code-based guest authentication SMS authentication MAB authentication Data encryption: WPA-TKIP, WPA-PSK, WPA2-AES, WEP (64/128-bit)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment ● ACL assignment based on time spans ● ACL assignment (complete entry) based on MAC addresses ● Execution of pre-configured ACLs (entry index) based on MAC addresses
CPP	Supported
NFPP	Supported

Routing and Switching	RG-AP180P-L
IP service	Static IPv4 address and DHCP-assigned IPv4 address
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping IPv6 DHCP Client
IP routing	IPv4/IPv6 static routing
VPN	PPPoE client IPsec VPN

Management	RG-AP180P-L
Network management	NTP server and NTP client SNTP client SNMP v1/v2c/v3 Fault inspection and alarm Information statistics and logging
Network management platform	Web-based management (Eweb)
STA access management	Console and Telnet-based management FTP client and TFTP client
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC. When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet. When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
