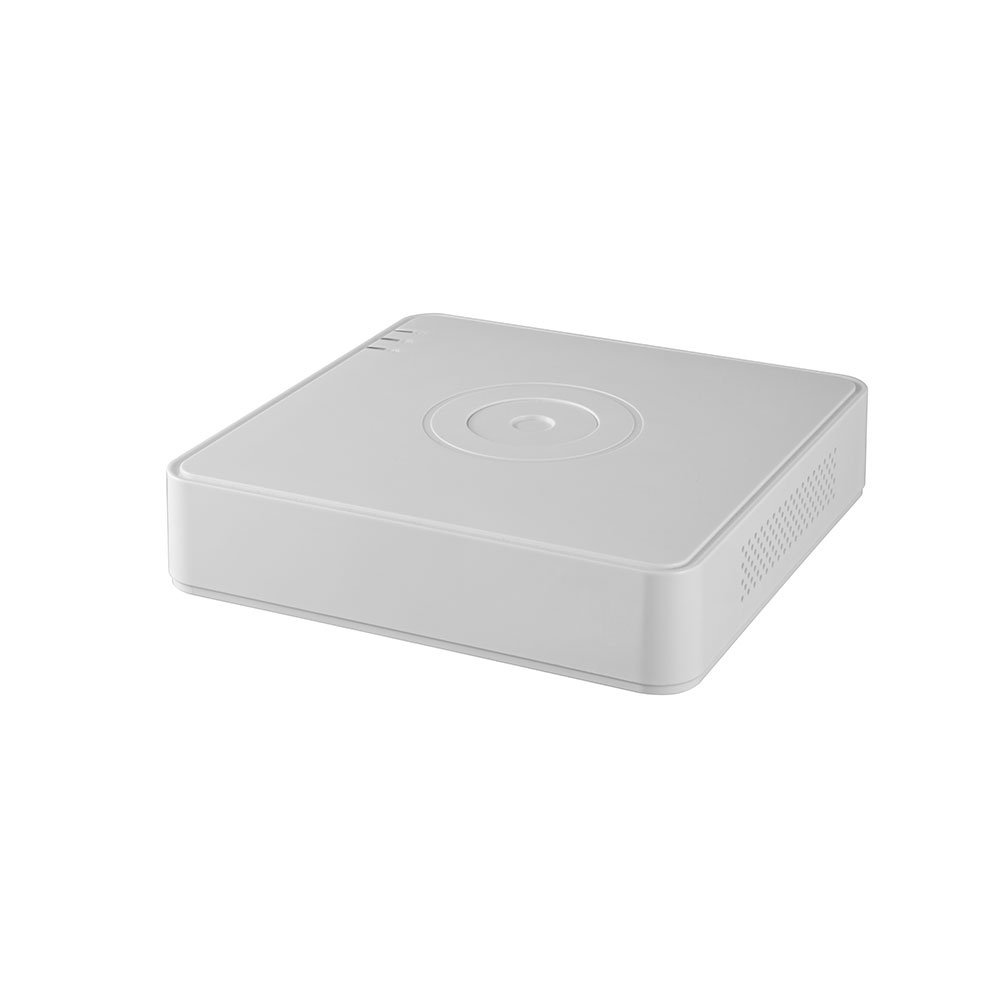

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.264, H.264+

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Analog and HD-TVI

 video input:

16-ch BNC interface (1.0Vp-p, 75 Ω)

IP Video Input Resolution:

Up to 960p resolution

Audio Input Interface:

RCA (2.0 Vp-p, 1 kΩ)

Audio Compression:

G.711u

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Video/Audio Output

HDMI/VGA Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Frame Rate:

Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N

Video Bit Rate:

32 Kbps ~ 4 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA (Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

16-ch

Network management

Network protocols:

         TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI,
         UPnP™, HTTPS

Remote connections:

         128

Hard Disk Driver

Interface Type:

1 SATA Interface

Capacity:

Up to 6 TB capacity for each disk

External Interface

Network Interface:

1; 10M / 100M self-adaptive Ethernet interface

USB Interface:

2 USB 2.0 Interfaces

General

Power Supply:

12 VDC

Consumption:

≤20W(without hard disks)

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

Weight:

≤ 1.2 kg / 2.6 lb(without hard disks)
