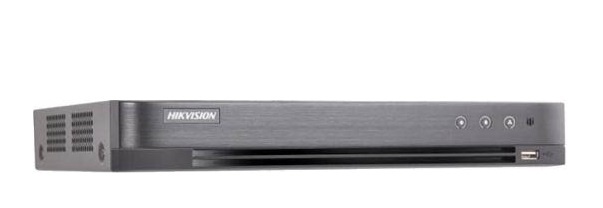

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.265+/H.265/H.264+/H.264

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Analog and HD-TVI

 video input:

24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Two-way Audio:

1-ch RCA (2.0Vp-p, 1kΩ) (using the 1st channel of audio input)

Video/Audio Output

HDMI/VGA Output:

1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz

Video Bit Rate:

32 Kbps-6 Mbps

Audio Bit Rate:

64kbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA (Linear, 1kΩ)

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Synchronous Playback

16-ch

Dual Stream:

Support

Network management

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote connections:

128

Hard Disk Driver

Interface Type:

2 SATA Interface

Capacity:

Up to 10TB capacity for each disk

External Interface

Network Interface:

1 10M / 100 / 1000M self-adaptive Ethernet interface

USB Interface:

1 USB 2.0 & 1 USB 3.0

General

Power Supply:

12 VDC

Consumption:

≤ ≤ 55 W (without hard disks)

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

380 × 320 × 48 mm

Weight:

≤ 2 kg (4.4 lb)
