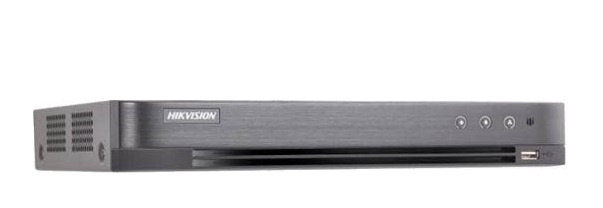

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.265+/H.265/H.264+/H.264

Supported camera types

Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25; Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.
Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVBS input

Analog and HD-TVI

 video input:

16-ch, BNC interface (1.0Vp-p, 75 Ω) connection

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Two-way Audio:

1-ch RCA (2.0Vp-p, 1kΩ) (using the 1st channel of audio input)

Video/Audio Output

HDMI/VGA Output:

HDMI: 1-ch,4K (3840×2160)/30Hz,2K (2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz

Frame Rate:

Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N); For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps; For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N); When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps-6 Mbps

Audio Bit Rate:

64kbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA (Linear, 1kΩ)

Two-way Audio

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Synchronous Playback

16-ch

Dual Stream:

Support

Network management

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote connections:

128

Hard Disk Driver

Interface Type:

2 SATA Interface

Capacity:

Up to 10TB capacity for each disk

External Interface

Network Interface:

1 10M / 100 / 1000M self-adaptive Ethernet interface

USB Interface:

2 USB 2.0 Interfaces

General

Power Supply:

12 VDC

Consumption:

≤ 25W (without hard disks)

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

380 × 320 × 48 mm

Weight:

≤ 2 kg (4.4 lb)
