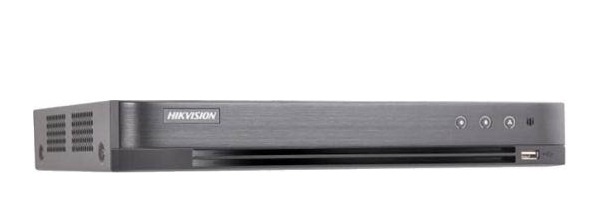

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Analog and HD-TVI

 video input:

32-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Video Input Interface

BNC (1.0 Vp-p, 75Ω)

IP Video Input:

1-ch (up to 5-ch)

Audio Input Interface

RCA (2.0 Vp-p, 1 kΩ)

Audio Compression:

G.711u

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input)

Video/Audio Output

HDMI/VGA Output:

1-ch, 4K (3840 × 2160)/30Hz, 2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz

Frame Rate:

Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps ~ 6 Mbps

Stream Type:

Video/Video&Audio

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

16-ch

Network management

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS ONVIF

Remote connections:

128

Hard Disk Driver

Interface Type:

2 SATA Interfaces

External Interface

Network Interface:

1 RJ45 10M/100M/1000M adaptive Ethernet

USB Interface:

1 USB 2.0 & 1 USB 3.0

General

Power Supply:

12 VDC

Consumption:

≤ 65 W

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

380 × 320 × 48 mm

Weight:

≤ 2 kg
