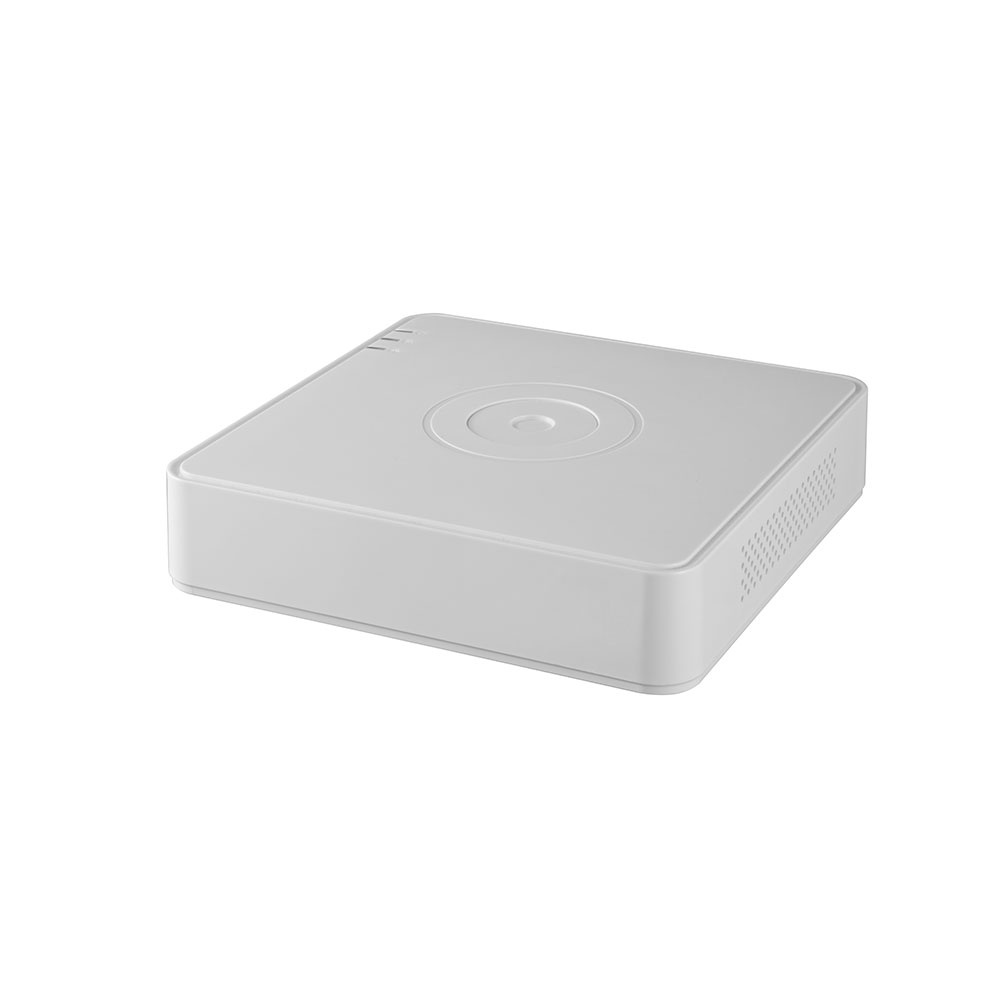

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.265+/H.265/H.264+/H.264

Analog and HD-TVI

 video input:

8-ch, BNC interface (1.0Vp-p, 75 Ω) connection

Video Input Interface:

BNC (1.0 Vp-p, 75Ω)

Audio Compression:

G.711u

Two-way Audio:

1-ch RCA (2.0Vp-p, 1kΩ) (using audio input)

Video/Audio Output

HDMI/VGA Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Frame Rate:

Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps-6 Mbps

Recording resolution:

When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF

Audio Bit Rate:

64kbps

Stream Type

Video/Video&Audio

Synchronous Playback

8-ch

Dual Stream:

Support

Network management

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote connections:

64

Hard Disk Driver

Interface Type:

1 SATA Interface

Capacity:

Up to 6 TB capacity for each disk

External Interface

Network Interface:

1 10M / 100M self-adaptive Ethernet interface

USB Interface:

2 USB 2.0 Interfaces

General

Power Supply:

12 VDC

Consumption:

≤ 12W (without hard disks)

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

200 × 200 × 45 mm

Weight:

≤ 1 kg (2.2 lb)
