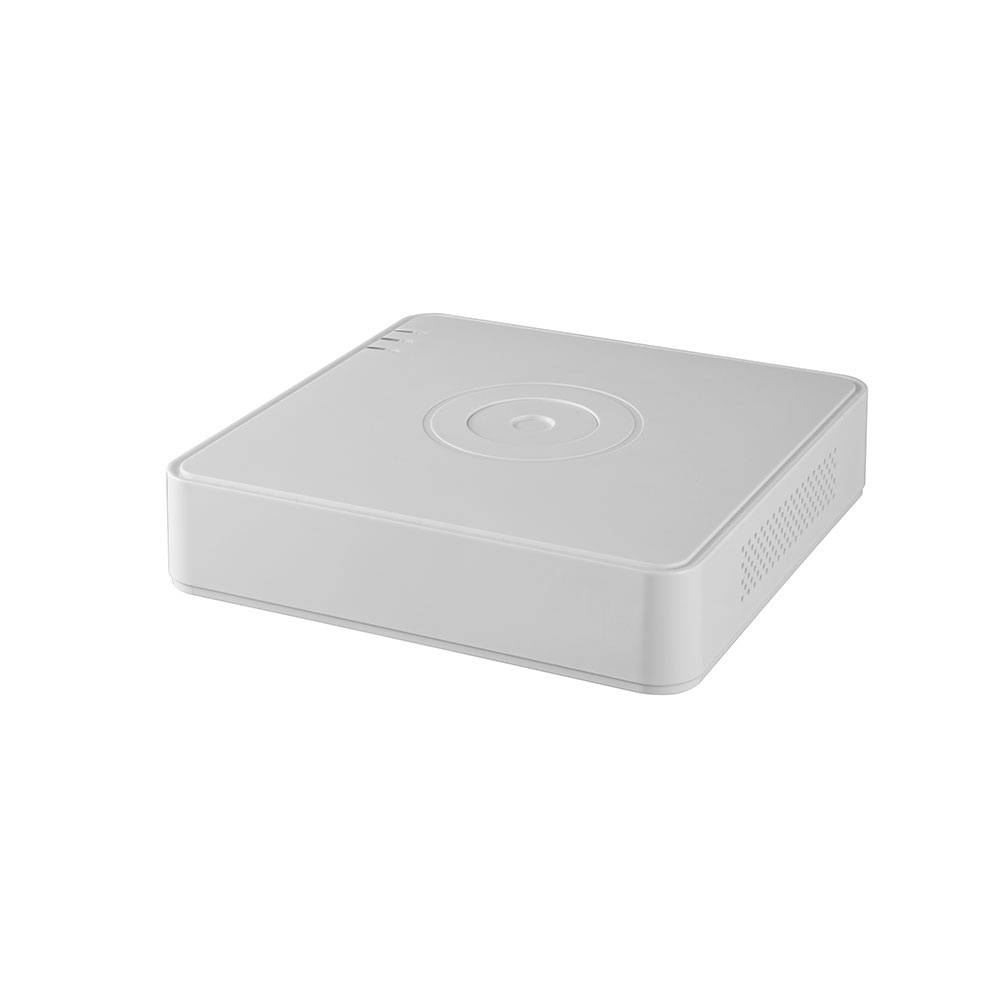

ĐẦU GHI HD-TVI

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.264, H.264+

Analog Video Input:

4-ch

Analog and HD-TVI

 video input:

4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

IP Video Input:

1-ch (up to 5-ch)

IP Video Input

Resolution

Up to 2 MP resolution

Audio Compression:

G.711u

Two-way Audio:

1-ch RCA (2.0Vp-p, 1kΩ)

Video/Audio Output

HDMI/VGA Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Frame Rate:

Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps ~ 4 Mbps

Stream Type:

Video/Video&Audio

Audio Output:

1-ch RCA (Linear, 1kΩ)

Audio Bit Rate:

64kbps

Dual Stream:

Support

Synchronous Playback:

4-ch

Network management

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote connections:

32

Hard Disk Driver

Interface Type:

1 SATA Interface

Capacity:

Up to 6 TB capacity for each disk

External Interface

Network Interface:

10M / 100M self-adaptive Ethernet interface

USB Interface:

USB 2.0 Interfaces

General

Power Supply:

12 VDC

Consumption:

≤ 8 W

Working Temperature:

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity:

10% to 90%

Dimensions:

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight:

≤ 0.8 kg (1.8 lb)
