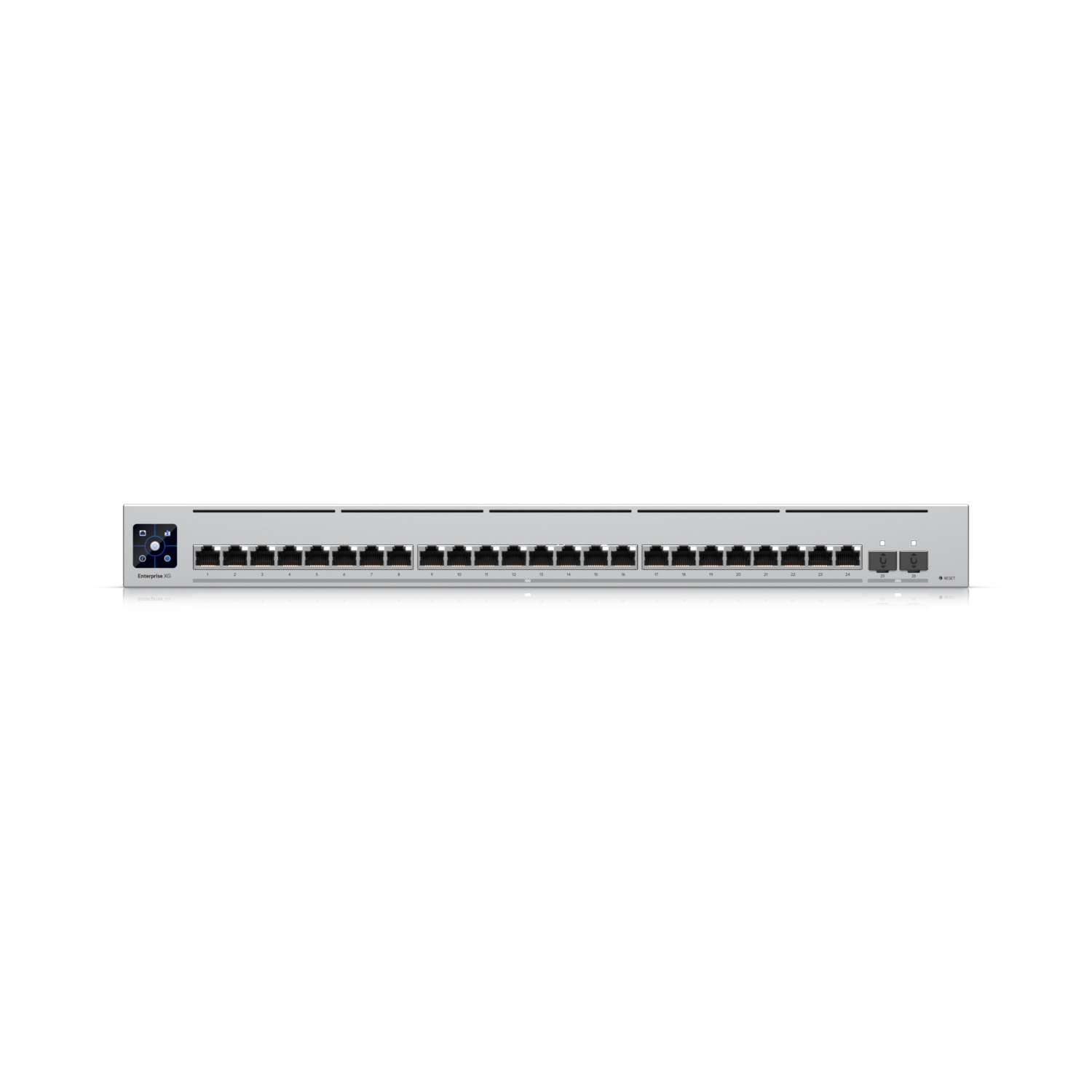

Switch USW-EnterpriseXG-24

Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.5 kg (9.9 lb)
With mounting brackets: 4.6 kg (11 lb)
Enclosure material SGCC steel

Hardware
Management interface	Ethernet In-Band
Networking interface	(24) 1/2.5/5/10 GbE ports (2) 25G SFP28 ports* _{*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.}
Total non-blocking throughput	290 Gbps
Switching capacity	580 Gbps
Forwarding rate	431.52 Mpps
Power method	(1) Universal input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply	AC/DC, internal, 100W
Supported voltage range	100—240V AC
Max. power consumption	100W
Services	SMB Layer 3 GbE switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC

Mechanical
Dimensions	442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight	Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(24) 1/2.5/5/10 GbE ports (2) 25G SFP28 ports* _{*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.}
Total non-blocking throughput	290 Gbps
Switching capacity	580 Gbps
Forwarding rate	431.52 Mpps
Power method	(1) Universal input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply	AC/DC, internal, 100W
Supported voltage range	100—240V AC
Max. power consumption	100W
Services	SMB Layer 3 GbE switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	Link/activity
Application Requirements
UniFi Network	Version 6.1.67 and later
