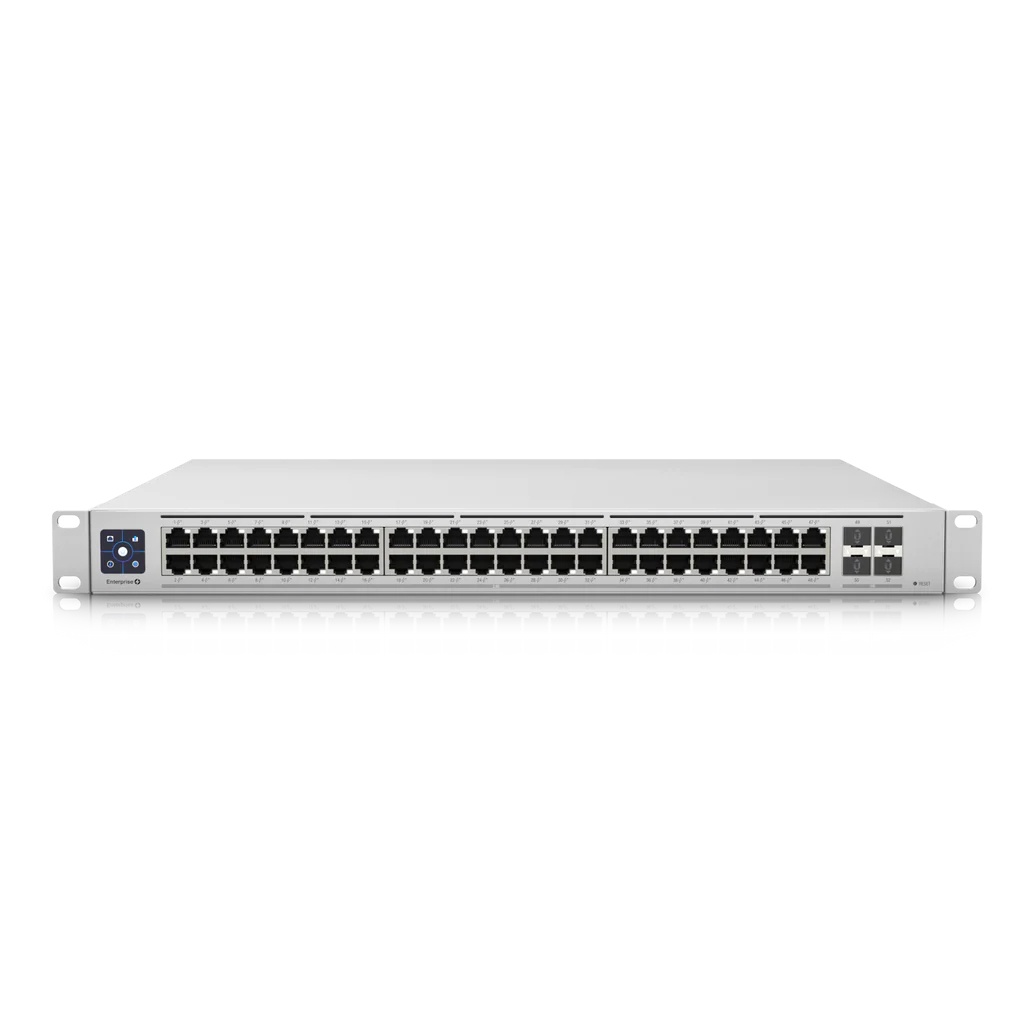

Switch USW-Enterprise-48-PoE

Warning: require() [function.require]: open_basedir restriction in effect. File(/opt/plesk/php/5.2/share/pear/detail_price.php) is not within the allowed path(s): (/var/www/vhosts/vientin.com/:/tmp/) in /var/www/vhosts/vientin.com/httpdocs/application/views/templates/tshop/product/detail.php on line 51

GIÁ BÁN: Liên hệ

Dimensions 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material SGCC steel

Hardware
Management interface	Ethernet In-Band
Networking interface	(48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports
PoE interface	(48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	160 Gbps
Switching capacity	320 Gbps
Forwarding rate	238.095 Mpps
Power method	(1) Universal input, 100—240V AC, 10A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply	AC/DC, internal, 100—240V, 10A Max.
Supported voltage range	100—240V AC
Max. power consumption	150W (Excluding PoE output)
Total available PoE	720W
Max. PoE wattage per port by PSE	PoE+: 34.2W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
Services	SMB Layer 3 PoE GbE Switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC

Mechanical
Dimensions	442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
Weight	Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports
PoE interface	(48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput	160 Gbps
Switching capacity	320 Gbps
Forwarding rate	238.095 Mpps
Power method	(1) Universal input, 100—240V AC, 10A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply	AC/DC, internal, 100—240V, 10A Max.
Supported voltage range	100—240V AC
Max. power consumption	150W (Excluding PoE output)
Total available PoE	720W
Max. PoE wattage per port by PSE	PoE+: 34.2W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
Services	SMB Layer 3 PoE GbE Switch
ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
LCM display	(1) 1.3" color touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
LEDs
System	Status
Ethernet	Link/activity
SFP+	Link/activity
Application Requirements
UniFi Network	Version 6.2.26 and later
