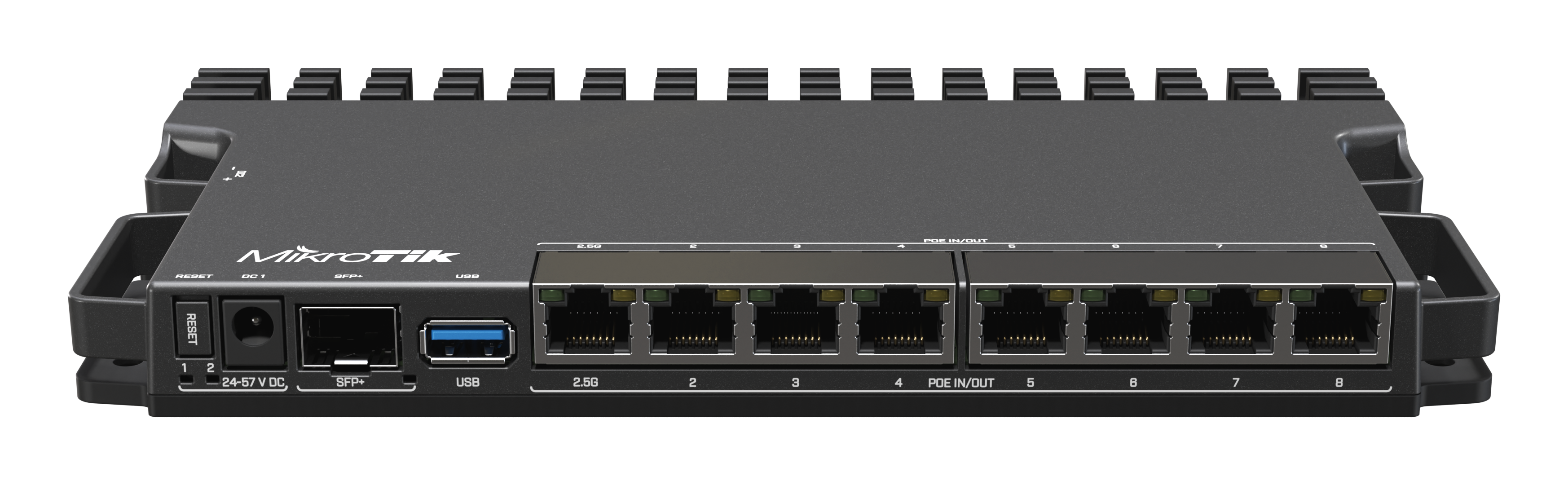

Router RB5009UPr+S+IN

Product code                        RB5009UPr+S+IN
Architecture                          ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency      350-1400 (auto) MHz
Switch chip model               88E6393

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!

Specifications

Details
Product code	RB5009UPr+S+IN
Architecture	ARM 64bit
CPU	88F7040
CPU core count	4
CPU nominal frequency	350-1400 (auto) MHz
Switch chip model	88E6393
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	1 GB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 60°C
IPsec hardware acceleration	Yes
Suggested price	$299.00

Powering

Details
Number of DC inputs	3 (DC jack, 2-pin terminal, PoE-IN)
DC jack input Voltage	24-57 V
2-pin terminal input Voltage	24-57 V
Max power consumption	150 W
Max power consumption without attachments	16 W
Cooling type	Passive
PoE in	802.3af/at (ether1), Mode B (ether2-ether8)
PoE in input Voltage	24-57 V

PoE-out

Details
PoE-out ports	Ether1-Ether8
PoE out	802.3af/at
Max out per port output (input 18-30 V)	900 mA
Max out per port output (input 30-57 V)	440 mA
Max total out (A)	2.59 A
Total output current	2.28
Total output power	130

Ethernet

Details
10/100/1000 Ethernet ports	7
Number of 1G Ethernet ports with Reverse PoE (PoE-in)	7
Number of 2.5G Ethernet ports	1
Number of 2.5G Ethernet ports with Reverse PoE (PoE-in)	1
