Router L009UiGS-RM

Router L009UiGS-RM

Product code                         L009UiGS-RM
Architecture                           ARM
CPU                                       IPQ-5018
CPU core count                     2
CPU nominal frequency        800 MHz
Switch chip model                 88E6190

L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters. And L009 IPsec hardware encryption ensures lower CPU usage without measurable performance degradation compared to the regular driver. You can expect around 60-90 Mbps throughput using a 1400 byte packet size.

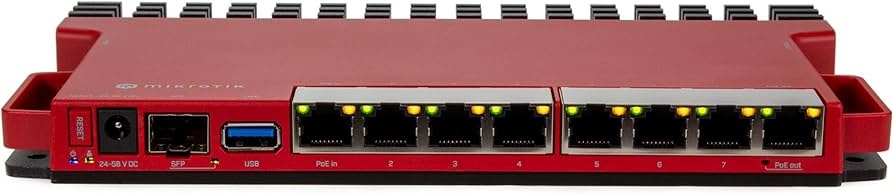

All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration!

Specifications

Details
Product code L009UiGS-RM
Architecture ARM
CPU IPQ-5018
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 88E6190
RouterOS license 5
Operating System RouterOS v7
Size of RAM 512 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $119.00
Powering
Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 24-56 V
Max power consumption 40 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-56 V
PoE-out
Details
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 1 A
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 1 A
Ethernet
Details
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with PoE-out 1
Fiber
Details
SFP ports 1 (2.5G supported)
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5
Other
Details
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP 20
