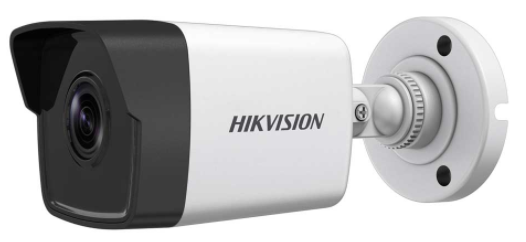

DS-2CD1023G0E-I (L)
-
2 MP IR Fixed Network Bullet Camera
-
1/2.8" progressive scan CMOS
-
1920 × 1080@30fps
-
2.8 mm/4 mm fixed lens
-
3D DNR
-
Not support DDNS
-
Up to 30 m IR range
-
IP67
- Camera IP HD 2MP
- Chip hình ảnh 1/2.8" progressive scan CMOS
- 1920 × 1080@20fps
- 2.8 mm/4 mm/6 mm fixed focal lens
- H.265, H.264
- Hồng ngoại 30 m
- Hỗ trợ 2 luồng dữ liệu
- Chống ngược sáng Digital WDR
- Giảm nhiễu 3D DNR
- PoE (Power over Ethernet)
- IP67
|
|
Camera |
|
|
|
|
||||||||
|
|
Image Sensor |
|
1/2.8" progressive scan CMOS |
|
|
||||||||
|
|
Min. Illumination |
|
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
|
|
||||||||
|
|
Shutter Speed |
|
1/3 s to 1/100, 000 s |
|
|
||||||||
|
|
Slow Shutter |
|
Yes |
|
|
||||||||
|
|
Auto-Iris |
|
No |
|
|
||||||||
|
|
Day &Night |
|
IR cut filter |
|
|
||||||||
|
|
Digital Noise Reduction |
|
3D DNR |
|
|
||||||||
|
|
WDR |
|
DWDR |
|
|
||||||||
|
|
Angle Adjustment (Bracket) Pan: |
|
0° to 360°, tilt: 0° to 180°, rotation: 0° to 360° |
|
|||||||||
|
|
Lens |
|
|
||||||||||
|
|
Focal length |
|
2.8 mm, 4 mm |
|
|
||||||||
|
|
Aperture |
|
F2.0 |
|
|
||||||||
|
|
Focus |
|
Fixed |
|
|
||||||||
|
|
FOV |
|
2.8mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° |
|
|
||||||||
|
|
Lens Mount |
|
M12 |
|
|
||||||||
|
|
|
|
|
|
|
|
|
||||||
|
IR |
|
||||||||||||
|
Wavelength |
|
850 nm |
|
||||||||||
|
IR Range |
|
Up to 30 m |
|
||||||||||
|
Compression Standard |
|
||||||||||||
|
Video Compression |
|
Main stream: H.265/H.264 |
|
||||||||||
|
H.264 Type |
|
Main Profile/High Profile/Baseline Profile |
|
||||||||||
|
H.265 Type |
|
Main Profile |
|
||||||||||
|
Video Bit Rate |
|
32 Kbps to 8 Mbps |
|
||||||||||
