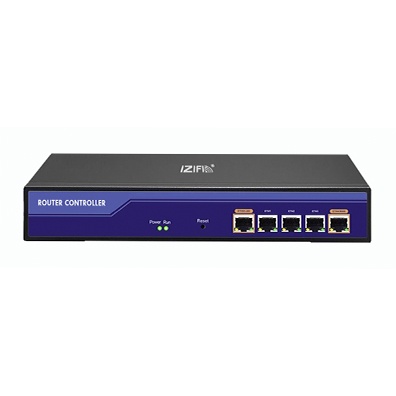

iSmartFi Router Controller RB8
Cổng kết nối:
(max.) 4 × 10/100/1000Mbps LAN
(min.) 1 × 10/100/1000Mbps WAN
Nguồn:
100 ~ 240V AC, 50Hz
- Là Router, Security Gateway and WiFi Controller cho doanh nghiệp nhỏ dựa trên giao thức CAPWAP và công nghệ DPI
- Lên đến 4 cổng Multi-Gigabit WAN/LAN
- Phục vụ 300 người dùng đồng thời (khoảng 800 kết nối đồng thời) với tốc độ, tính ổn định và bảo mật cao
- Quản lý và cấu hình tập trung (lên đến 256 AP)
- Hỗ trợ PPPoE/DHCP/Static IP, Smart QoS
- Hỗ trợ nhiều cổng Gigabit WAN với tính năng load balancing
- Hỗ trợ bảo mật với TCP/UDP/ ICMP Flooding, IP/MAC/URL/Web
| Model | RB8 |
| Protocol |
IEEE 802.3, 802.3u, 802.3ab TCP/IP; DHCP; ICMP; NAT; PPPoE; SNTP; HTTP; DDNS; PPTP; L2TP; CAPWAP Protocol |
| Heat Dissipate | Super silent ball fan |
| Ports |
(max.) 4 × 10/100/1000Mbps LAN (min.) 1 × 10/100/1000Mbps WAN port |
| Power | 100 ~ 240V AC,50HZ |
| Dimension | 500mm*285mm*80mm |
| Working Temperature | -20℃ ~ 55℃ |
| Storage Temperature | 40℃ ~ 70℃ |
| Working Humidity | 5% ~ 97%RH (No condensation) |
| Firmware Features | |
|
Concurrent APs Concurrent Connections Management |
(max.) 256 APs (max.) 256 Real-time CCs Centrally and remotely to manage, to configure wireless AP and view user’s status |
| Smart Flow Control |
One - click smart low control Powerful multi - line diversion Application priority automatically |
| Load Balancing |
Multiple WAN ; Multiple ISP network access Intelligence load balancing Ethernet line backup Ethernet Superimposed Policy routing: Based - on IP address, destination IP address, source MAC address, network port, domain, destination port, Extranet port, Identity binding Protocol binding |
| Routing |
Static Routing Policy-Based Routing |
| Behavior Management |
All-round to block P2P firmware P2P low control and bandwidth allow File and URL filter Monitor network behavior in Real-Times |
| Bandwidth Limitation |
Based – on IP bandwidth limitation Safeguard / Restrict bandwidth Time strategy Based – on IP session restriction |
| Security Center |
MAC address filter Username Password / Keywords filter Web content filter IP address filter Port mapping DMZs |
| Defense Center |
Network Loop detection warning DHCP Rouge detection warning Lan DDoS limit packer per second |
| ARP Detection |
Send GARP packets ARP Scanning on WAN/LAN port Online detection IP-MAC binding |
| Authentication |
PPPoE authentication Portal authentication Username / Password authentication One-time Password authentication |
| Management | Web/CLI/Telnet management Remote management |
| Others | DDNS |
| Content |
RB8 device x 01 Power Cable x 01 Installation Accessory QIG*1 |
