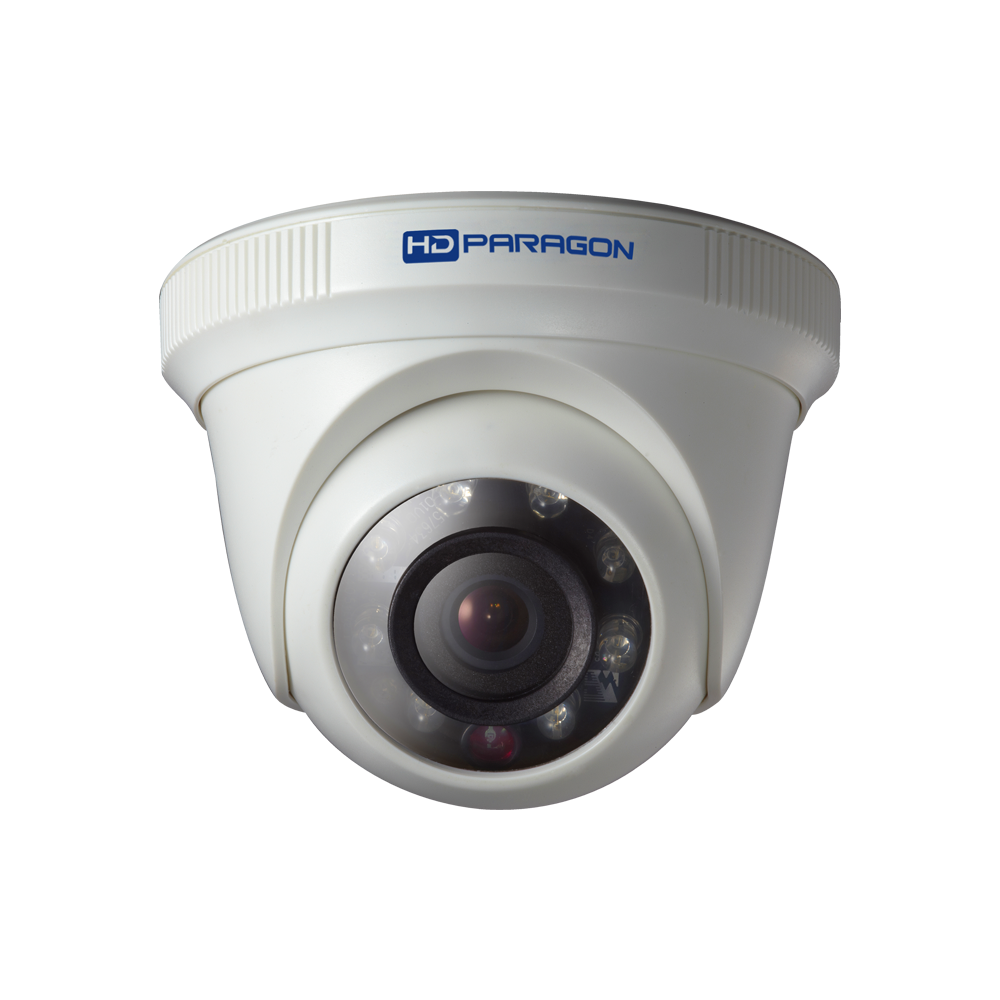

CAMERA HD-TVI

Camera

Image Sensor:

1MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1296(H)x732(V)

Min. Illumination:

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens Mount:

M12

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Video Frame Rate:

720p@25fps/720p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

S/N Ratio:

More than 62 dB

Operating Conditions:

-20 °C - 45 °C (-4 °F - 113 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%

IR Range:

Up to 20m

Dimension:

89.5 × 69.8 mm (3.52” × 2.75”)

Weight:

250 g
